Bosch Blueline G2 PIR (ISC-BPR2-W12) (E43060)

Bosch Blueline G2 PIR (ISC-BPR2-W12) (E43060)

In Stock

SKU: ISC-BPR2-W12

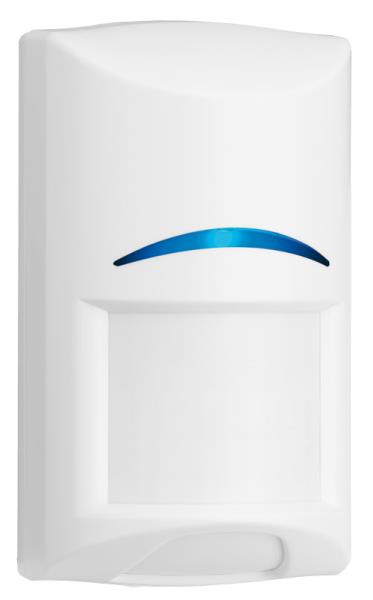

Bosch Blueline G2 PIR (ISC-BPR2-W12)

The Blue Line Gen2 PIR Motion Detectors (ISC-BPR2) use two Fresnel lenses designed to produce sharply focused images throughout the field of view providing superior response to intruders. These lenses provide a high density (77 zone) 7‑layer pattern, and the selectable look down lens provides an additional three look down zones. Easy installation and flexible mounting options provide state-of-the-art detection. The pet‑friendly (-WP) generates alarm signals for human intruders without generating false alarm signals for pets.

  • Wall to Wall coverage – Superior catch performance within 12 m x 12 m coverage area
  • Pet friendly Selectable model available – optimize installation for pet (20 kg) and non pet applications
  • Dynamic Temperature Compensation – superior catch performance in any environment
  • Flexible Mounting Height, No Adjustments – reduce installation time and false alarms, improve catch performance
  • Self-locking Enclosure with Integrated Bubble Level – reduce installation time
Current (standby/alarm): 10 mA at 12 VDC
Voltage (operating): 9 VDC to 15 VDC
Environment Complies with EN50130-5 Class II
Pet Immunity1 One or two pets up to 20 kg (45 lb) or

numerous rodents.
Relative Humidity: 0 to 95%, non-condensing

For UL Listed product installations,

0 to 85%, non-condensing
Temperature (operating): -30°C to +55°C (-20°F to +130°F)

For UL Listed product installations, 0°C

to +49°C (+32°F to +120°F)
Colour: White
Dimensions: 105 mm x 61 mm x 44 mm

(4.2 in. x 2.4 in. x 1.7 in.)
Material: High-impact ABS plastic
Radio Frequency

Interference (RFI)

Immunity

 No alarm or setup on critical frequencies in the

range from 150 kHz to 2 GHz at field strengths

less than 30 V/m.
Relay: Solid state, supervised, Form A normally-closed (NC)

contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω

closed
Tamper: Normally-closed (NC) contacts (with cover on) rated

for ≤100 mA, 25 VDC, 2.5 W
