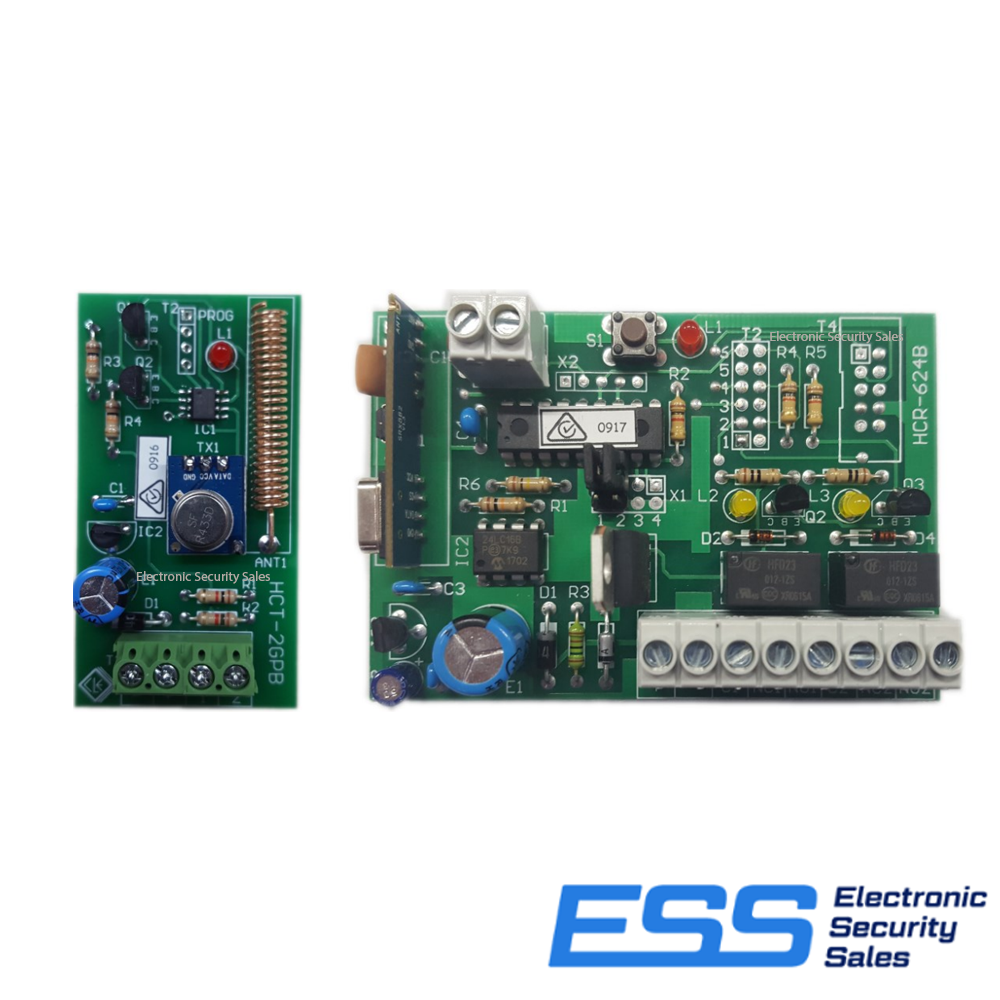

Bosch Point to Point TX/RX 2 channel Wireless Link

Designed to suit outputs from alarm panels

• High performance transmitter
• Mini 12VDC plug pack for receiver or transmitter
•  2 x SPDT relay outputs @ 1Amp
• 12 month warranty

The PTP TX/RX kit is particularly useful for operating remote gates or doors from
the alarm panel outputs of a SolutionTM system using DSRFTM equipment. The
two RF systems operate on different frequencies thus there is no interference
between the two. In the case where no wiring has been installed or allowed for,
to remote devices this system is an ideal option.

Specifications
-Operating Voltage Transmitter 9 to 14VDC
-Receiver 12 to 24V AC or DC
-Current Consumption @12V Transmitter standby 1.8mA
-Transmitting 43mA
-Receiver standby 9mA
-One relay activated 25mA
-Enclosure dimensions 90mm(L) x 70mm(W) x 34mm (D)
-RF Receiver Super heterodyne crystal locked
-Relay rating 1 Amp MAX @ 24VDC
-Plug Pack transformer 12VDC 0.5A switch mode
-RF signal Keeloq TM code hopping 433.92Mhz
-4.2 billion combinations
