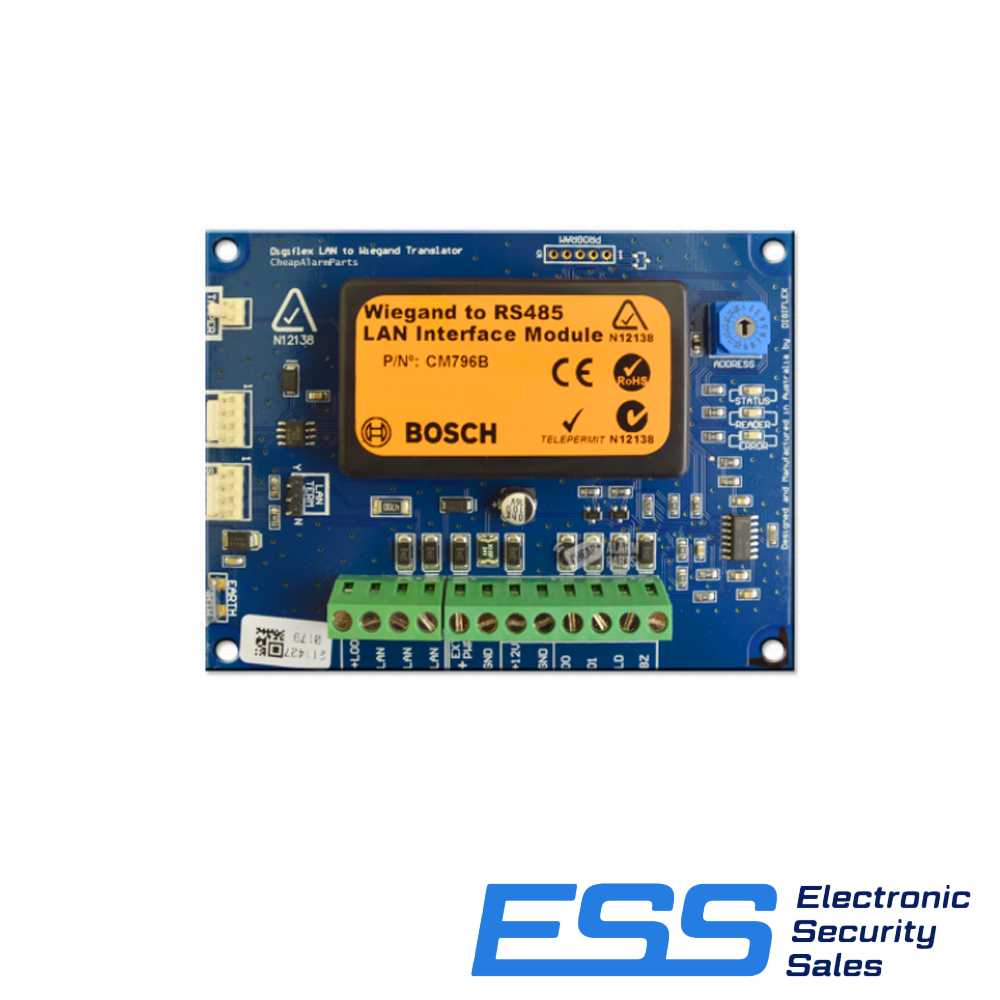

Bosch Wiegand to RS485 Lan Module (CM796B) (E43074)

Name: Bosch Wiegand to RS485 Lan Module (CM796B) (E43074)
SKU: CM796B

In Stock

SKU: CM796B

The CM796B Weigand to RS485 Lan Interface module has been developed to allow other 3rd party wiegand proximity readers to be interfaced to the Solution 6000 Control Panel. The module supports Wiegand formats from 26bit to 40bit and includes support for the LED Buzzer control.

Format:	Wiegand format -26bit – 40bit
Operating Voltage:	10.0VDC- 14.5VDC @50mA Max
Module connection:	Max total LAN length using multi stranded security cable = 300M Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m
Operating Environment:	0° to 55°C.Relative Humidity 5 to 85% at 30°C non-condensing.
Warranty	3 years from date of manufacture
