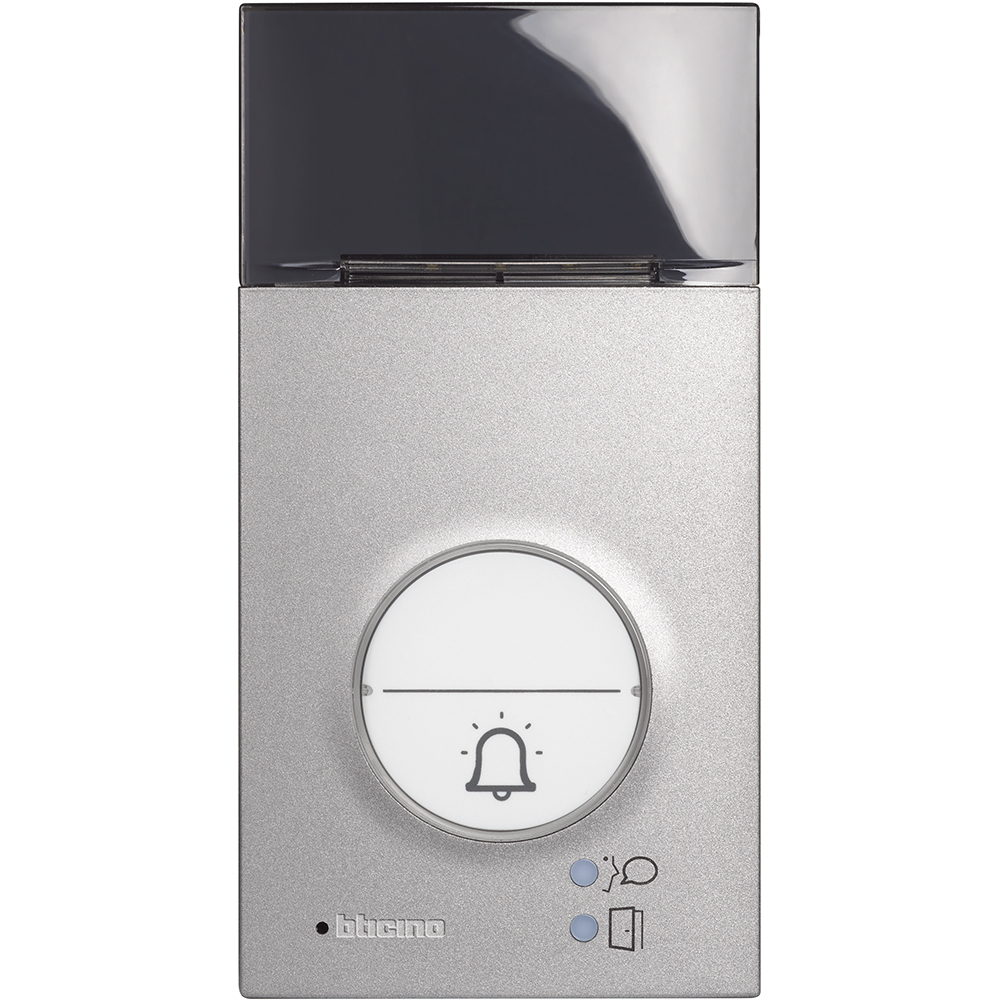

Bticino 343071 EXTERNAL UNIT LINEA 3000 AUDIO 2 Wire Metal

Linea 3000 wall mounted 2-Wires push button panel with Zamak front cover. Can be set up for one or two family installation. It provides the possibility of opening an electrical door lock directly connected to clamps S+ and S- (18 V 4 A impulsive, 250 mA holding current, 30 ohm max). White LED back lit name plate. Protection degree IP54 – protection against mechanical impact IK10.

Dimensions: 190 mm (H) x 100 mm (W) x 26.65 mm (D)
