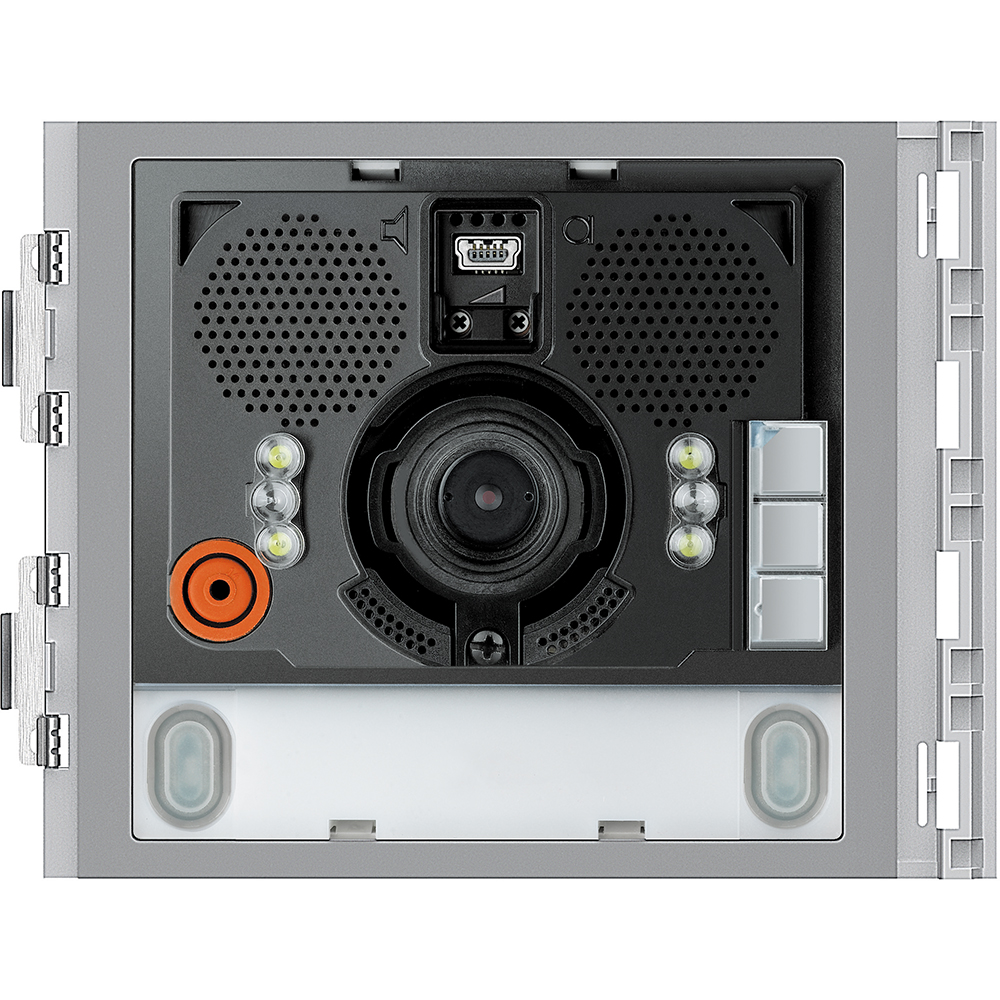

Audio video module suitable for 2 wires colour video systems.
Fitted with colour camera with 1/3” sensor and white LEDs for
the lighting of the shooting field. Mist prevention heating
resistance. Loudspeaker and microphone volume adjustments. It
can manage up to 98 pushbutton calls using the additional
double row pushbutton modules. Horizontal and vertical camera
position adjustment, +/- 10° in both directions. It offers the
possibility of opening an electrical door lock directly connected to
clamps S+ and S- (18 V 4 A impulsive – 250 mA holding current
30 Ohm max) and of connecting a local door lock release
pushbutton on clamps PL. Preset for additional power supply.
Fitted with front LEDs for the notification of the operating status:
door lock release, communication active, call put through, and
system busy. Integrated optic sensor for the switching on of the
night backlighting. To be completed with surround plate. The
device must be configured physically or using a PC and the
TiSferaDesign software.
