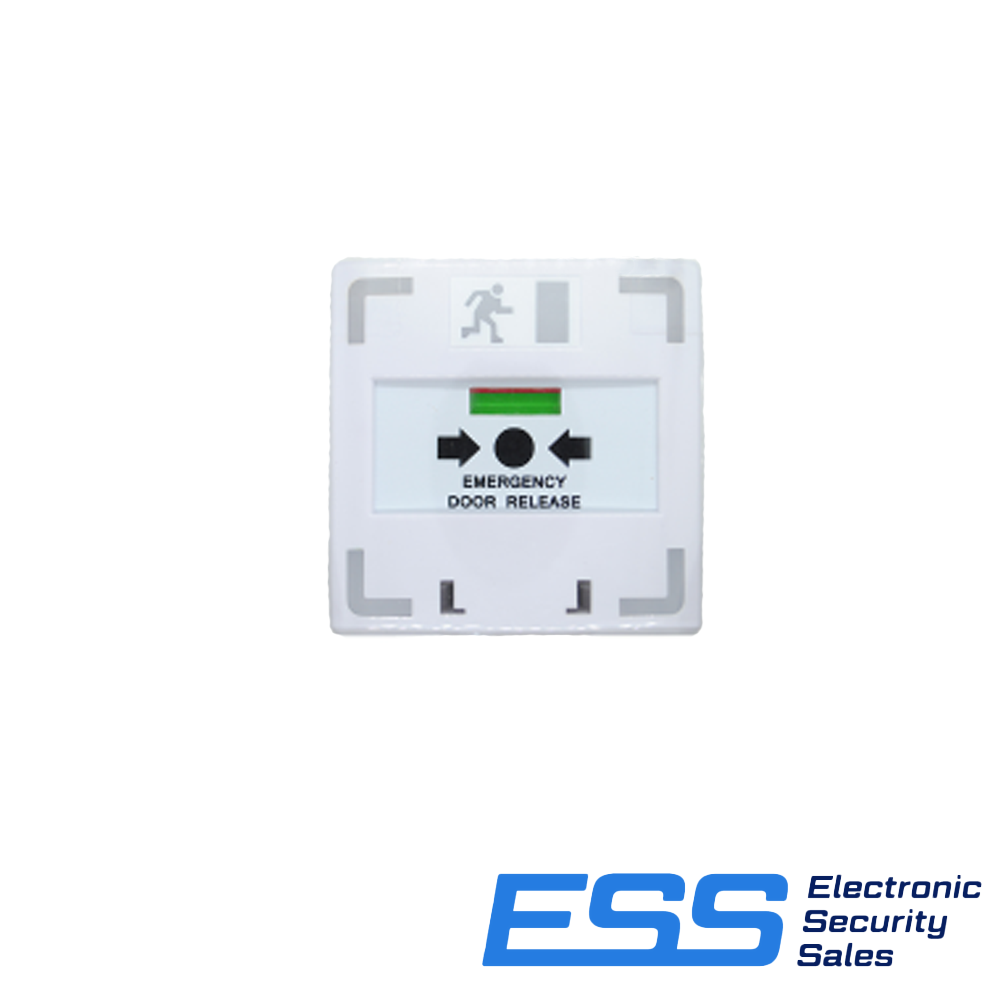

Emergency Door Release – White – Resettable

SCP-110：Power supply: DC 12V~DC 24V Built-in Buzzer status. Indicator: Dual-colour (red and green). Red indicator to set blinking. off or on. Triple pole re settable break glass

Features

• Red or green case to select (it is suggested to select red case for fire alarm system and green case for access control system).
• Resettable design, SCP-110 obvious indicators around the edges of the unit.
• Press the pressing plate to set the red indicator.
• Pressing plate with status (green and red) shown.
• Reversionary key with non-slip design.
• Input power range from DC12-24V to connect with all types of fire alarm system.
• Built-in buzzer status to set as silent, interval wailing or continuous wailing. Volume is adjustable.
• Easy to assemble, outer case without screws, 3 set of output points to connect other equipment, embedded or surface installations to select.
• Dimenisions: SCP-100：90 L x 93 W x 45 H (mm)/SCP-110：90 L x 93 W x 45 H (mm)
• Weight: SCP-100：192 g，SCP-110：208 g。
