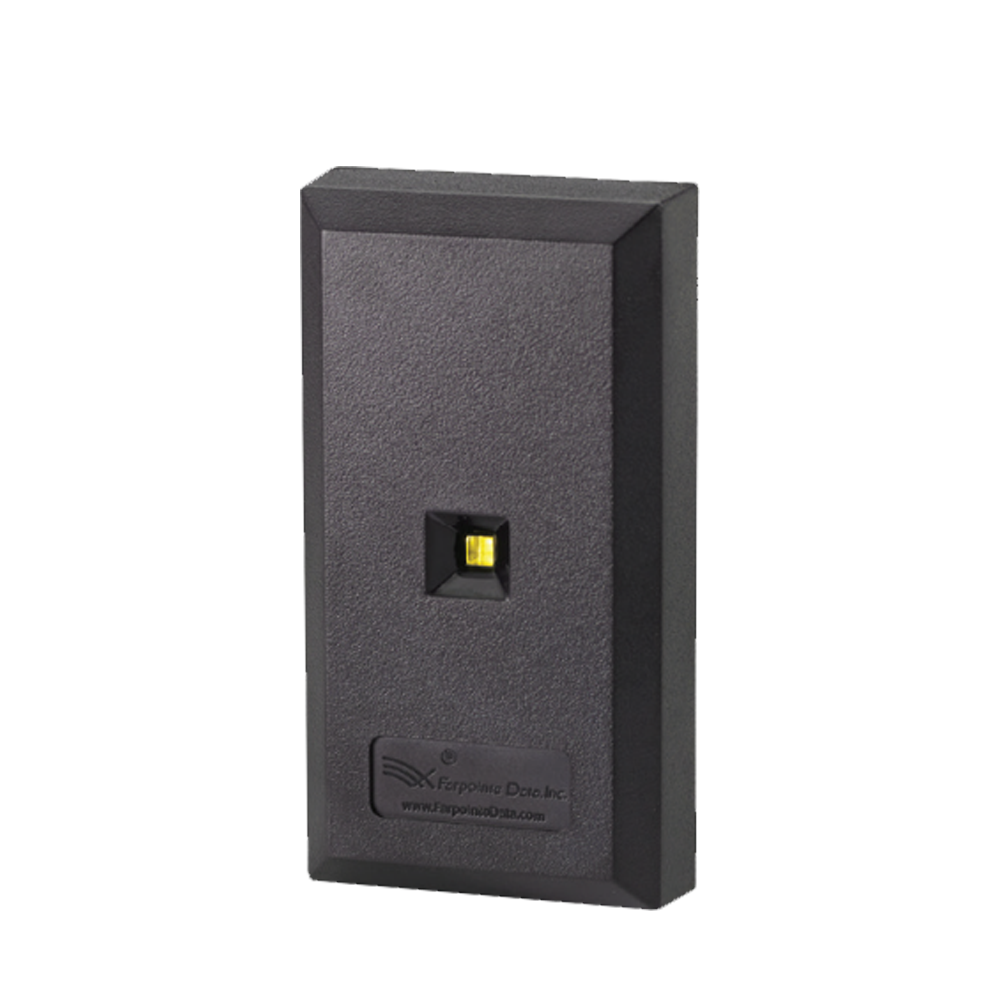

Farpointe Delta3 Mullion Mount Smartcard Reader – Sector (E13055-Sector)
Low Stock
Farpointe Delta3 Mullion Mount Smartcard Reader – Sector
Delta comprises Farpointe Data’s 13.56 MHz line of contactless smartcard readers, cards, and tags. Based upon proven MIFARE® contactless
digital radio frequency identification (RFID) technology, Delta readers interface with a wide range of electronic access control systems by
complying with the Wiegand communication protocol. They offer value-add features such as MAXSecure™ and ValidID™, and support sector and
card serial number (CSN) reads. Additionally, Delta cards and tags are passive devices, eliminate maintenance by requiring no battery, and can be
ordered programmed to various formats and encryption keys.
Specifications: Delta3
Technology: Contactless smartcard
Frequency: 13.56 MHz
Mounting: Mullions, including metal door and window frames, as well as flat surfaces
Dimensions: 1.7″ W × 3.2″ H × 0.7″ D (43 mm × 81 mm × 18 mm)
OEM Label Area Dimensions: 0.9″ W × 0.35″ H (22.86 mm × 8.89 mm) with corner radius of 0.06″ (1.5 mm)
Weight: 3 oz (85 g)
Certifications: FCC, ICC, CE
IP Code: IP67
Voltage: +8 – 14 VDC
Current Draw: 135 mA typical @ 12 VDC
Read Range: Up to 1.5 inches (38 mm)
Cabling: 24 AWG minimum, multiconductor stranded with an overall foil shield
Interface: Wiegand, ABA Track II
Operating Temperature: –40° F to 149° F (–40° C to +65° C)
Colour Options: A black snap-on cover included standard
Audio Tone: Beeper included standard
Indoor & Outdoor Installation: Electronics sealed in weather- and tamper-resistant epoxy potting
Warranty: Limited lifetime warranty
LED: Four-state standard (red, green, amber, and off)
Technologies Supported: Delta3-CSN7
: Supports CSN-only reading of certain credentials making use of ISO 14443 and ISO 15693
compliant protocols.
