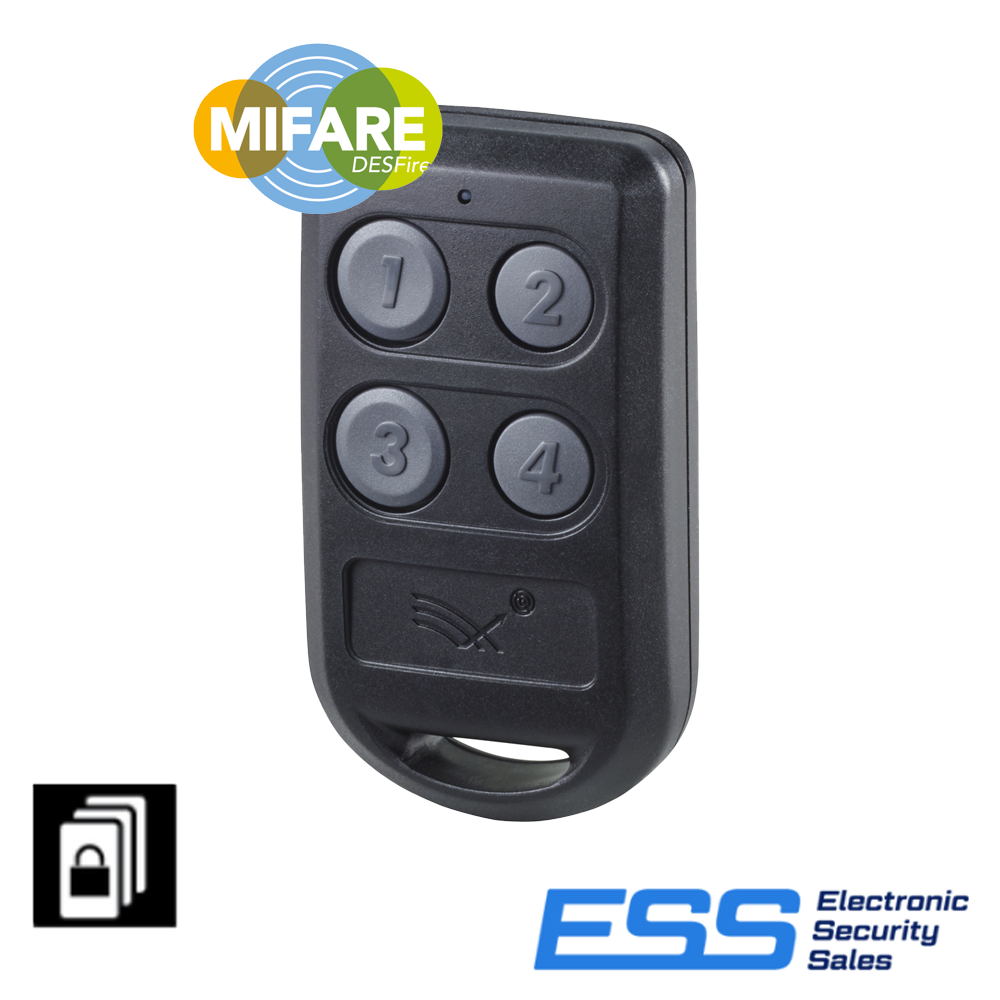

Farpointe LR 4 Button TX with DESfire 4k Chip – MAXsecure™
Farpointe LR 4 Button TX with DESfire 4k Chip – MAXsecure
Ranger from Farpointe Data sets the electronic security benchmark for high frequency, long-range identification Receivers and Transmitters. Based upon proven contactless digital ultra high frequency (UHF) technology, the Ranger Receivers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. They offer value-add features such as MAXSecure™ and up to 200 feet of read range (WRR-44). Additionally, Ranger Transmitters are active devices, powered by the most reliable and common battery, and equipped with a potted proximity or contactless smartcard module. The modules can be ordered to support several proximity reader technologies and allow the Transmitter to be used as a close-range credential.
| Specifications | WRT-2+ & WRT-4+ |
| Technology | Long range |
| Frequency Button press | 433 MHz |
| Presentation | 125 kHz or 13.56 MHz |
| Marking | Date code and ID |
| Dimensions | 37 mm × 63.5 mm × 14.2 mm |
| Button Press Transmission | Rolling code + encryption |
| Weight | 20 g |
| Certifications | FCC, ICC, CE, UL Standard 294 (WRT-4+)1 |
| IP Code2 | IP65 |
| Battery | Single replaceable CR2032, 3.3V, lithium battery |
| Compatibility Button press | WRR-44 and WRR-22 Receivers |
| Presentation | Pyramid readers and others |
| Read Range | 4 Button press Up to 200 feet (61 m) Presentation: Up to 3.5 inches (88 mm) |
| Durability | Electronics sealed in a weather-resistant enclosure |
| Interface | Wiegand (26-bit industry standard and custom Wiegand formats) |
| Operating Temperature | –40° F to 122° F (–40° C to +50° C) |
| Enclosure Color | Black polycarbonate enclosure with gray ABS keys OEM Label Area |
| Dimensions | 0.9″ W × 0.35″ H (22.86 mm × 8.89 mm), with corner radius of 0.63″ (16 mm) Key Ring6 Optional 1-inch (25 mm) key ring |
| Warranty | 1-year limited warranty |
| Convenience | Built-in eyelet makes it easy to carry on a key ring or lanyard LED Integrated red LED standard (activated upon button press) |
| Transmitters Models | WRT-2+ (2 buttons labeled 1 & 2) WRT-4+ (4 buttons labeled 1 through 4) |
| Presentation | Insert Interoperability7 WRT-2+ or WRT-4+: Supports 125-kHz Pyramid Series Proximity® protocols8 WRT-2+H or WRT-4+H: Supports certain HID® 125-kHz Proximity protocols9 WRT-2+A or WRT-4+A: Supports certain AWID® 125-kHz Proximity protocols10 WRT-2+S1 or WRT-4+S1: Supports certain MIFARE® Classic 1K 13.56-MHz Smartcard protocols11 WRT-2+S4 or WRT-4+S4: Supports certain MIFARE® Classic 4K 13.56-MHz Smartcard protocols11 |
