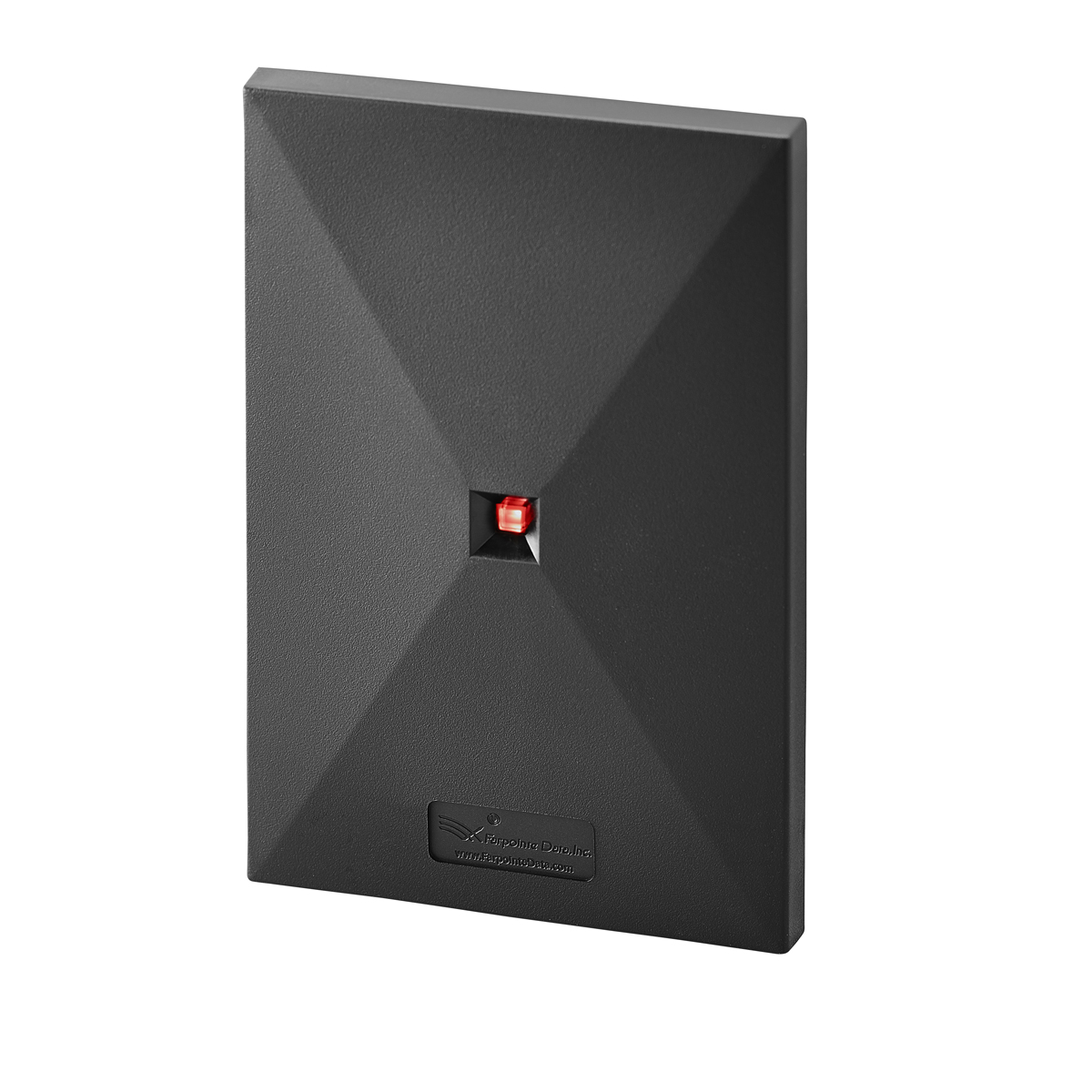

Farpointe® MCR50H Indala® Format Reader (reads Farpointe®, Indala® + certain HID® 125-kHz Proximity protocols) (E13048)
In Stock
Login to see pricesFarpointe® MCR50H Indala® Format Reader (reads Farpointe®, Indala® + certain HID® 125-kHz Proximity protocols)
The MCR Proximity Readers are specialty readers within the Pyramid Series Proximity® family of readers. Making use of proven digital radio
frequency identification (RFID) technology, they support certain Indala® ASP Advantage Series Proximity formats, certain HID® 125-kHz proximity
protocol, and Pyramid series 125-kHz proximity protocol. Allowing for both indoor and outdoor operation, the electronics are secured in tamper resistant epoxy potting.
| Specifications | MCR-50-H |
| Mounting | Metal or plastic US single-gang wall box, as well as flat surfaces |
| Dimensions | 3″ W × 4.6″ H × 0.4″ D (76 mm × 117 mm × 10 mm) |
| OEM Label Area Dimensions | 0.9″ W × 0.35″ H (22.86 mm × 8.89 mm) with corner radius of 0.06″ (1.5 mm) |
| Weight | 4 oz (113 g) |
| Certifications | FCC, ICC, CE, UL Standard 2941 |
| IP Code2 | IP67 |
| Voltage3 | +5 – 16 VDC |
| Current Draw | 0.07 to 0.085A |
| Read Range4 | Up to 7 inches (176 mm) |
| Cabling5 | 24 AWG minimum, multiconductor stranded with an overall foil shield |
| Interface | Wiegand |
| Operating Temperature | –40° F to 149° F (–40° C to +65° C) |
| Color Options | Black snap-on cover included standard |
| Audio Tone | Beeper included standard |
| Indoor & Outdoor Installation | Electronics sealed in weather- and tamper-resistant epoxy potting |
| Warranty | Limited lifetime warranty |
| LED | Four-state standard (red, green, amber, and off) |
| Keypad Output6 | Wiegand |
| Technologies Supported | Certain Indala® ASP formats7 + certain HID® 125-kHz Proximity protocols8 + native Pyramid 125-kHz Proximity protocols9 |
