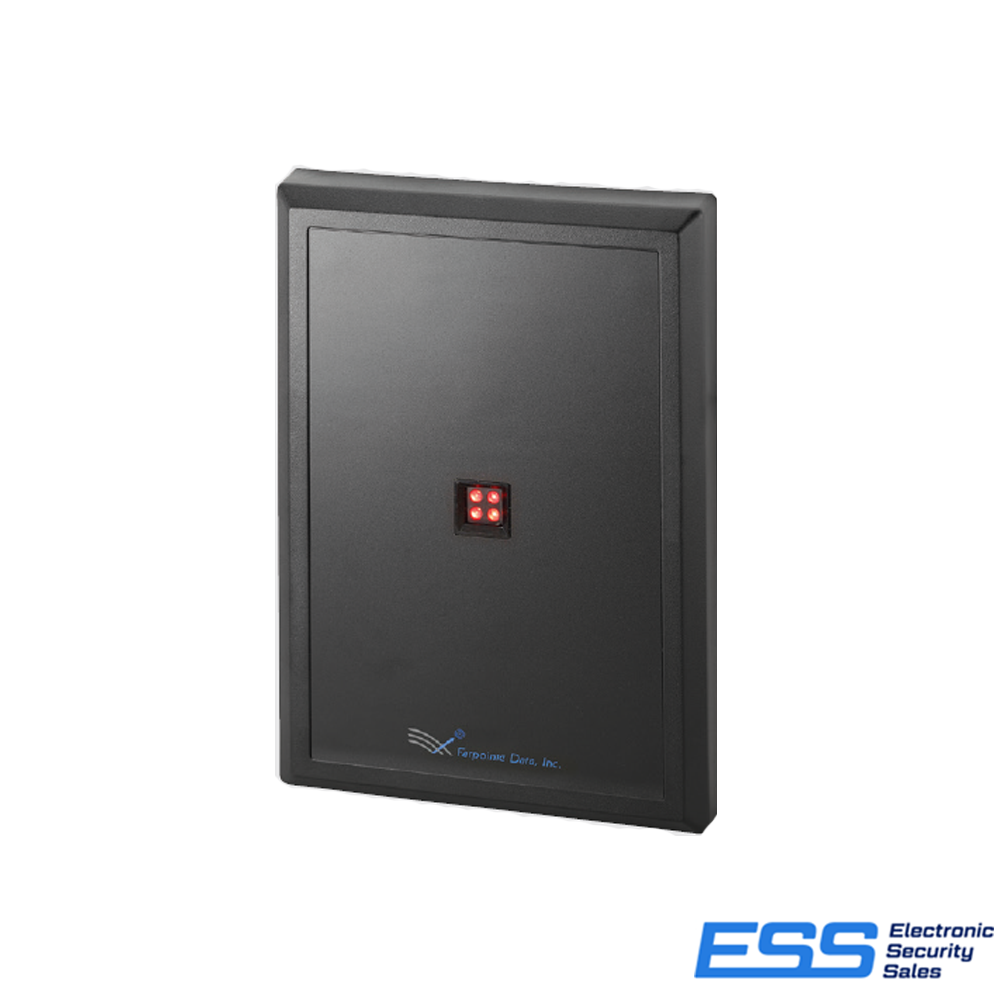

Farpointe® P710H Medium Range Reader (reads Farpointe® + certain HID® 125-kHz Proximity protocols) (E13006)
Low Stock
Login to see pricesFarpointe® P710H Medium Range Reader (reads Farpointe® + certain HID® 125-kHz Proximity protocols)
Pyramid Series Proximity® from Farpointe Data sets the electronic security benchmark for 125-kHz proximity readers, cards, and tags. Based
upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interface with a wide range of electronic access
control systems by complying with the Wiegand communication protocol. They offer value-add features such as MAXSecure™ and fleaPower™,
and can be ordered to support several proximity card and tag technologies. Additionally, Pyramid cards and tags are passive devices, eliminate
maintenance by requiring no battery, and can be ordered to support several proximity reader technologies.
| Specifications | P-710 |
| Technology | Proximity |
| Frequency | 125 kHz |
| Mounting | Metal or plastic US single-gang/double-gang wall box, as well as standard parking bollards and non-metallic flat surfaces |
| Dimensions | 6″ W × 8.5″ H × 1″ D (216 mm × 152 mm × 25.4 mm) |
| Weight | 20 oz (567 g) |
| Certifications | FCC, ICC, CE, UL Standard 294 |
| 1 IP Code2 | IP67 Voltage3 +5 – 16 VDC |
| Current Draw | 215 mA typical, 600 mA peak @ 12 VDC |
| Read Range4 | Up to 15 inches (378 mm) |
| Cabling5 | 24 AWG minimum, multiconductor stranded with an overall foil shield |
| Interface | Wiegand ABA Track II |
| Operating Temperature | –40° F to 149° F (–40° C to +65° C) |
| Color Options | Black enclosure with a black label concealing mounting screws |
| Audio Tone | Beeper included standard |
| Indoor & Outdoor Installation | Electronics sealed in weather- and tamper-resistant epoxy potting |
| Warranty | Limited lifetime warranty |
| LED | Four-state standard (red, green, amber, and off) |
| Technologies Supported | P-710: Pyramid Series Proximity® Cards and Tags6 P-710-H: Pyramid + certain HID® 125-kHz Proximity protocols7 P-710-A: Pyramid + certain AWID® 125-kHz Proximity protocols8 P-710-H-A: Pyramid + certain HID® 125-kHz Proximity protocols + certain AWID® 125-kHz Proximity protocols |
