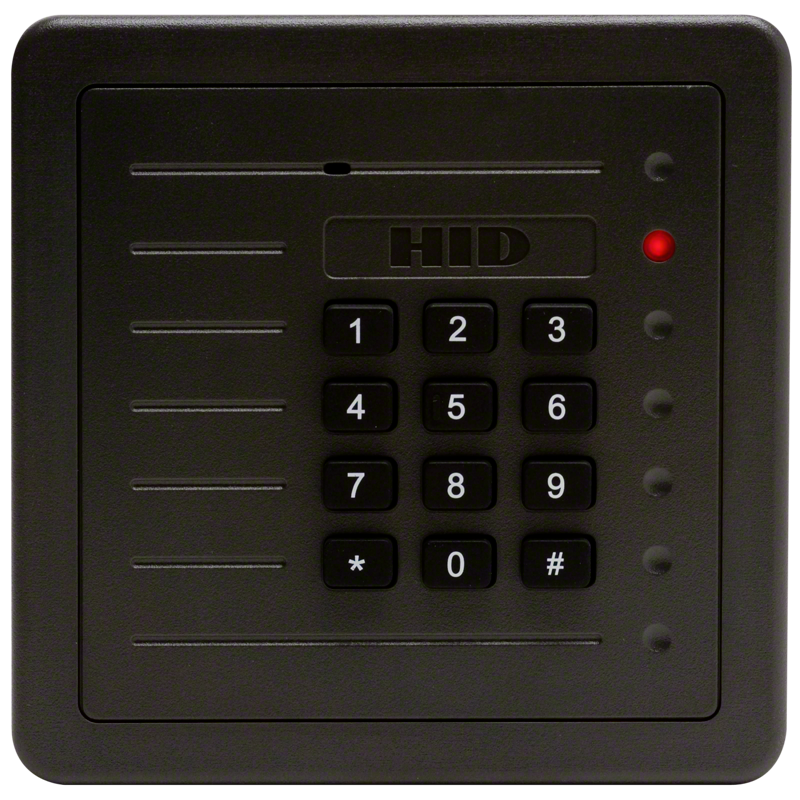

HID ProxPro with Keypad

SKU: E11004

HID ProxPro with Keypad

The Prox Pro® proximity card reader’s weatherproof design and architecturally attractive enclosure allows easy mounting indoors or out. The Prox Pro Reader is ideal for applications requiring a larger read range.

  • Ideal for medium-range applications.
  • Available with Wiegand, Serial (RS-232/RS-422) or Clock-and-Data interface.
  • Sealed for indoor or outdoor use.
  • Optional glass mount kit available for mounting the reader behind glass.
  • Available in grey or beige.
  • Keypad data and card data can be sent on the same cable, or on a separate cable using 2 of 7 or 3 x 4 matrix.

Key Features

  • Affords high reliability, consistent read range characteristics, and low power consumption in a single, easy-to-install package.
  • Features multicolour LED, internal or host control of the LED, and/or beeper and a beeper “off” switch for silent operation.
  • Provides Wiegand protocol interface compatibility with all standard access control systems.
  • Offers an optional, fully integrated personal identification number keypad for heightened security. Can be mounted to glass (using the optional glass mounting kit).

Typical maximum* read range
ProxCard® II Card – up to 8″ (20 cm)
ISOProx® II Card – up to 7″ (17.5 cm)
DuoProx® II Card – up to 7″ (17.5 cm)
Smart ISOProx® II Card – up to 7″ (17.5 cm)
Smart DuoProx® II Card – up to 7″ (17.5 cm)
HID Proximity & MIFARE® card – up to 7″ (17.5 cm)
ProxCard® Plus Card – up to 3″ (7.5 cm)
ProxKey® II Keyfob – up to 3″ (7.5 cm)
MicroProx® Tag – up to 4″ (10.2 cm)
ProxPass® Active Vehicle Tag – N/A

*Depending on local installation conditions.

Dimensions
12.7 x 12.7 x 2.54 cm

Power Supply
10-28.5 VDC; Linear power supplies recommended. Reverse voltage protection included.

Current Requirements
Average: 100 mA (12 VDC)
Peak: 120 mA (24 VDC)

Operating Temperature
-30º to 65º C

Operating Humidity
0-95% relative humidity non-condensing

Weight
336 gm

Cable Distance
Wiegand or Clock and Data interface: 152 m
RS-232 interface: 15 m
RS-422 interface: 1219 m
Recommended cable is ALPHA 1295 (22 AWG) 5 conductor stranded with overall shield or equivalent.
Additional conductors may be required for LED or beeper control. RS-422 requires ALPHA 6212C 2-Twisted Pair, shielded cable with drain wire, or equivalent for data, plus ALPHA 1292C two-conductor shielded or equivalent for DC power.
