HID RPK40-H MultiClass SE Keypad Reader (E12027)

Low Stock

SKU: HID-RPK40SE

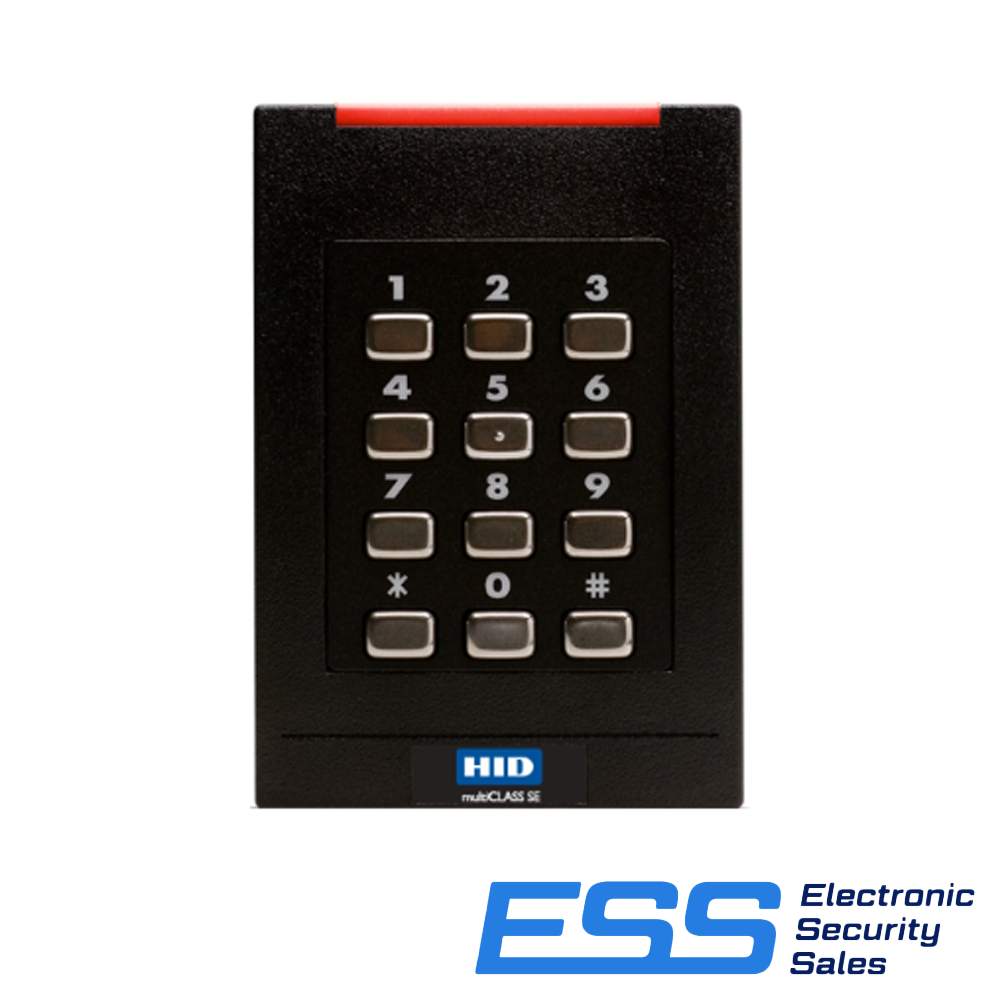

HID RPK40-H Multi-Class SE Keypad Reader

iCLASS SE® and multi-CLASS SE®
mobile-enabled readers are part of the
HID Mobile Access® solution that offers a
consistent user experience across different
devices and operating systems, including
iOS and Android. The readers can be
configured to using a smartphone with
a “tap” or utilizing HID Global’s patented
“Twist and Go” gesture technology.
Ideal for new and existing installations,
the interoperable iCLASS SE and
multiCLASS SE readers support a variety
of industry-standard technologies,
including iCLASS Seos®, standard
iCLASS®, iCLASS SE, MIFARE®, MIFARE
DESFire® and HID Prox. Simultaneous
support of mobile device and existing
card populations facilitates mixed
population use and migration to
a more secure standard.
Advanced multi-layered security is
provided via the iCLASS SE platform
with its Secure Identity Object® (SIO®)
data model. This additional layer of
security ensures tamper-resistant
protection of keys and cryptographic
operations. The incorporation of Seos
technology to manage identity data
results in a dynamic and highly secure
mobile solution.

Typical Read Range*:
Both “Twist & Go” and “Tap” ranges are likely maximum distances based on recommended settings in a typical lab
environment.
Read ranges and behaviour will vary by installation, due to a variety of factors.
Reader-specific read range and power settings will contribute to adjusting behaviour.
Mobile IDs using Bluetooth & Seos® Twist and Go: 2 m Tap: 15 cm

Technical Specifications:

Dimensions: 8.5 cm x 12.2 cm x 2.8 cm

Operating Voltage Range 5-16 VDC Linear supply recommended

Standby AVG Current : 117 mA

PEAK Current: 260 mA

Operating Temperature: -13º to 150º F (-25º to 65º C)

Storage Temperature:  -67º to 185º F (-55º to 85º C)

Operating Humidity: 5% to 95% relative humidity non-condensing

Transmit Frequency: 2.4GHZ, 13.56 MHz
2.4 GHz

Credential Compatibility:
Secure Identity Object (SIO) on iCLASS Seos, iCLASS SE, SIO-enabled MIFARE DESFire EV1 and
SIO-enabled MIFARE Classicstandard iCLASS Access Control Application (standard iCLASS cards)
ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN
Custom sectors on MIFARE, Custom app/file on DESFire EV1 (custom programming feature)
Secure Identity Object (SIO) on NFC-enabled devices using Host-Based Card Emulation
125 kHz Credential
Compatibility
(multiCLASS only)
HID Prox, AWID, EM4102

Cable Distance: Optional OSDP with SCP over RS485 (4000 ft)

Wiegand/Clock-and-Data Interface: 500ft (150m) (22AWG)
Use Shielded cable for best results

Reader Personalization: Mobile-enabled readers come fully personalized to read customer/site-specific Mobile IDs. Mobile-ready readers come fully prepared to read Mobile IDs but to do not include customer/site-specific personalization.
Install Mobile-ready readers to prepare for Mobile IDs in the future.

Panel Connection: Pigtail or Terminal Strip
