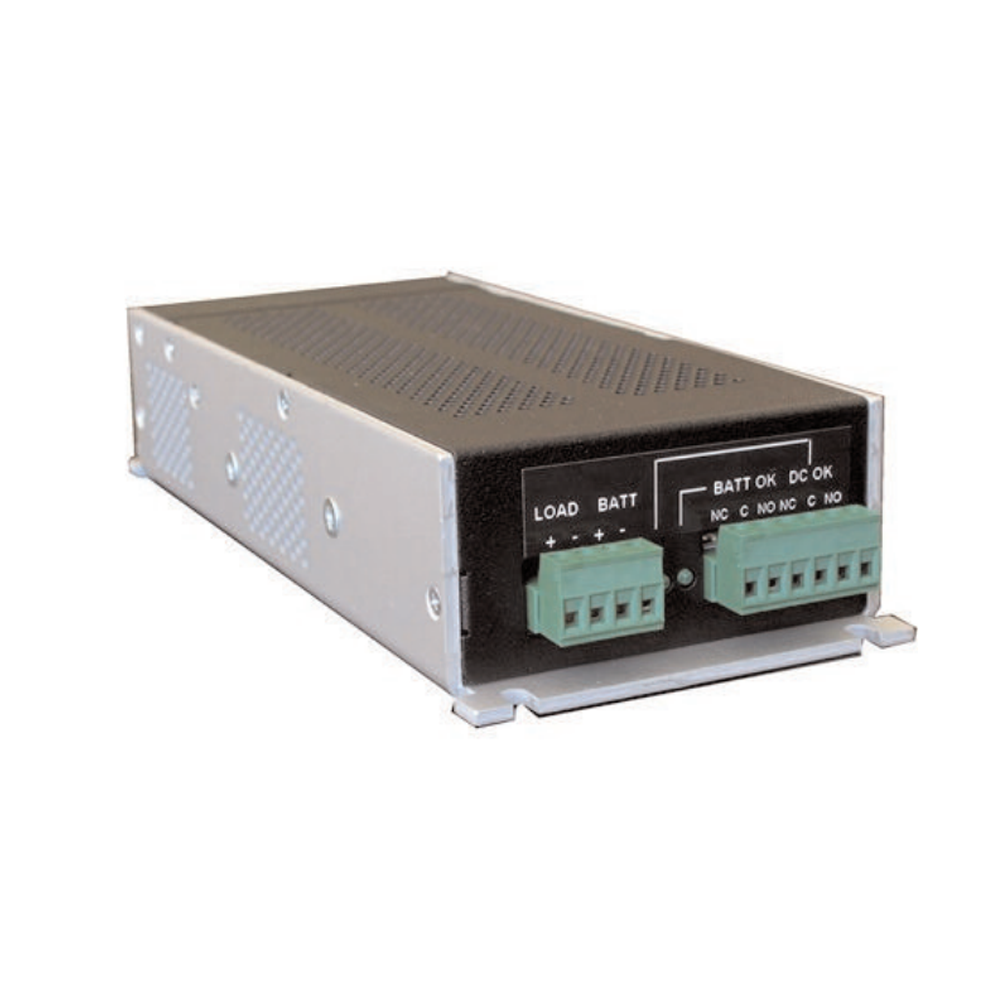

Powerbox PB256-1210CML 13.8VDC 10AMP PSU
Low Stock
Login to see pricesPowerbox PB256-1210CML 13.8VDC 10AMP PSU
The PB256 Series is a family of 13.8Vdc and 27.6Vdc, 110W / 140W off-line battery chargers / DC uninterruptible power supplies which operate from 220/240Vac mains power. when connected to a lead-acid battery. These units provide uninterrupted power to a DC load in the event of mains failure.
The PB256 Series contains a two-step current limited float charger, battery charge current limiting, a battery low voltage disconnect and mains/charger and battery alarms. It employs high efficiency technology, combined with very low output noise that makes it suitable for powering broad range of loads such as security, radio, scada, control equipment and alarm systems etc.
The PB256 is available in chasis mount enclosure, and can be fitted into the WMBB wall mount box. A supplementary heatsink is needed for 140W models to operate at maximum power. All models employ natural convection cooling.
INPUT
| Input Voltage | 190-.264Vac, or 190-.400Vdc |
|---|---|
| Frequency | 45 to 65 Hz |
| Input Current | 3A maximum |
| Inrush current | 15A on cold start |
| Line Regulation | 0.2% typical |
| OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Voltage | 13.8Vdc, 27.6Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output Power | 138W | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output Current | 13.8Vdc: 10A
27.6Vdc: 5A See Selection Table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Load regulation | 2% typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| Ripple & Noise | 25 mVp-p (13.8Vdc output) 45mVp-p (27.6Vdc output) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency | > 80% | ||||||||||||||||||||||||||||||||||||||||||||||||
