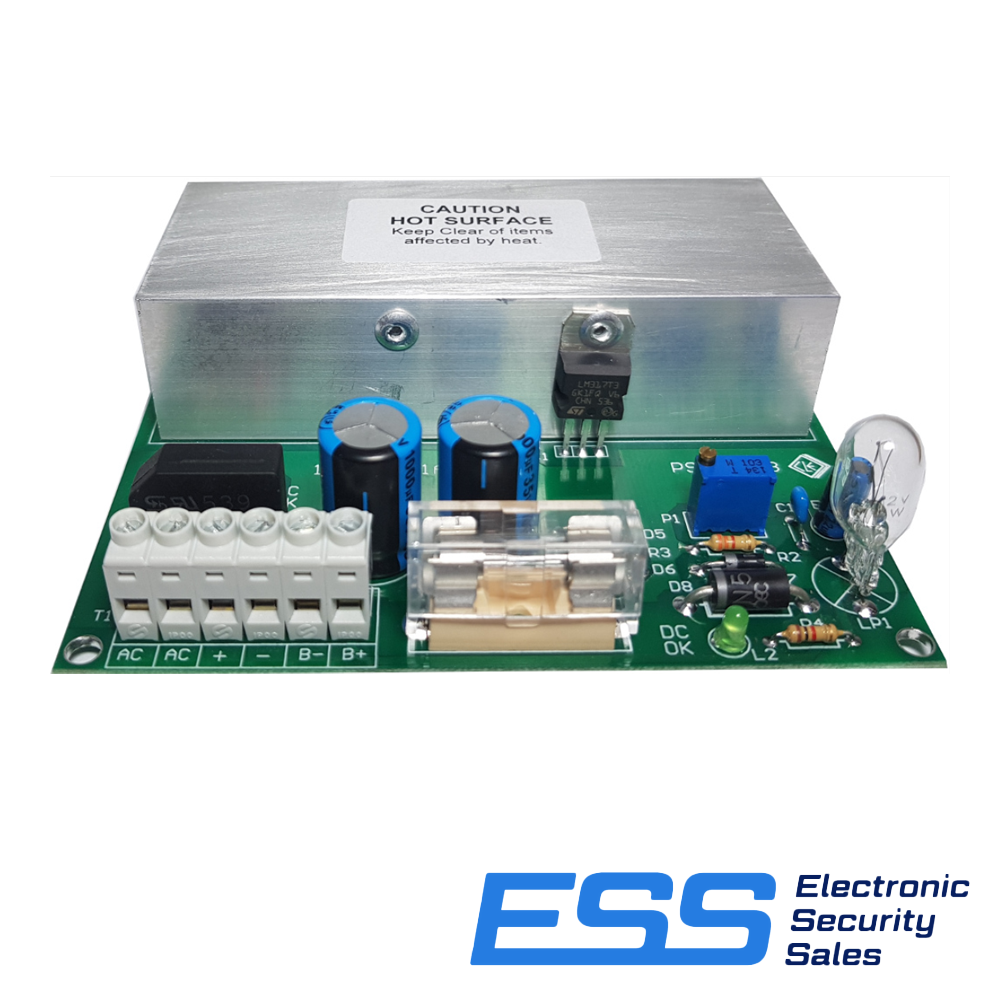

PS138-V3 13.8VDC 1AMP Power Module

This module is a general purpose adjustable linear 12 to 13.8VDC 1 Amp power supply module for use with a standard 1.5 Amp 16 to 18VAC plug pack. This version features a larger improved heat sink. Provision has been made for connection of a Sealed Lead Acid (SLA) battery via the supplied leads which will be trickle charged by the module if the set voltage is between 13.5 and 13.8VDC. A Red LED is provided to indicate the presence of AC power. A Green LED indicates the fuse is OK and there is power at the output terminals. Four adhesive standoffs (6.35mm high) are provided to mount the module in an enclosure. This module is supplied with TWO (2) M205 fast blow fuses.

Input voltage: 16 to 18VAC 1.5 Amp
Output voltage: 12 to 13.8VDC 1 Amp adjustable
Battery: up to 7AH Sealed Lead Acid.
Fuses: 1.5A and 5A M205 fast blow supplied
Dimensions: 105mm (L) x 90mm (W) x 30mm (H)
Weight: 133 grams
