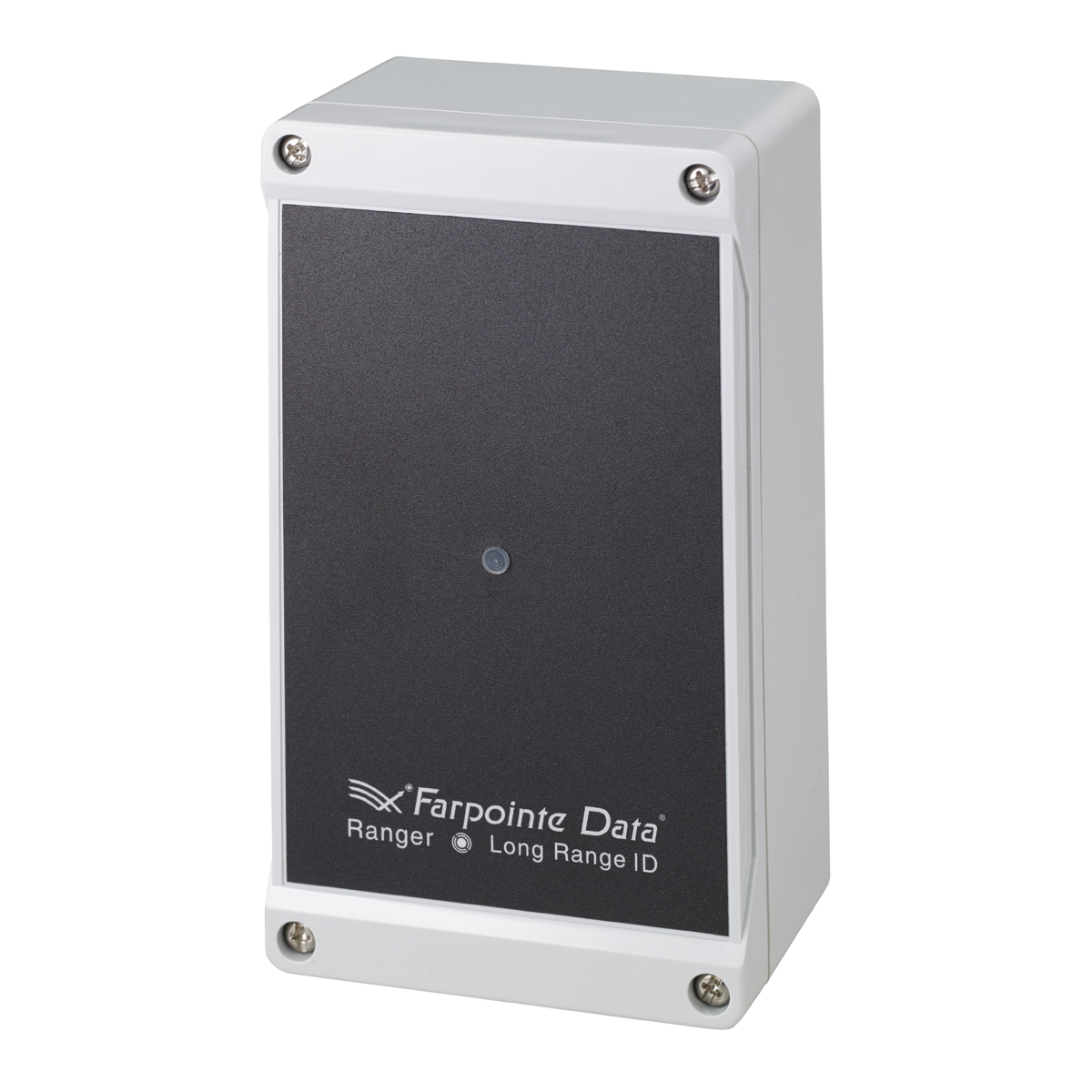

Ranger 4 Channel Long Range RX – OSDP – MS

Ranger from Farpointe Data sets the electronic security benchmark for high frequency, long-range identification Receivers and Transmitters. Based upon proven contactless digital ultra high frequency (UHF) technology, the Ranger Receivers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. They offer value-add features such as MAXSecure™ and up to 200 feet of read range (WRR-44). Additionally, Ranger Transmitters are active devices, powered by the most reliable and common battery, and equipped with a potted proximity or contactless smartcard module. The modules can be ordered to support several proximity reader technologies and allow the Transmitter to be used as a close-range credential.

Specifications: WRR-44
Technology: Long range
Frequency: 433 MHz
Mounting1: USA/European wall box or any flat surface
Dimensions: 3.4″ W × 6.3″ H × 2.3″ D (86.4 mm × 160 mm × 58.4 mm)
Transmission: Rolling code + encryption
Weight: 12 oz (340 g)
Certifications: FCC, ICC, CE, UL Standard 2942
IP Code3: IP65
Voltage4: 12 VDC nominal
Current Draw: 120 mA typical @ 12 VDC
Read Range5: Up to 200 feet (61 m), installer adjustable
Cabling6: 24 AWG minimum, multiconductor stranded with an overall foil shield
Interface7: Wiegand (26 bit industry standard and custom Wiegand formats)
Operating Temperature: –40° F to 149° F (–40° C to +65° C)
Enclosure Colour: Off-white plastic enclosure with black label
Audio Tone: Beeper included standard, installer switchable
Indoor & Outdoor Installation: Electronics sealed in a weather-resistant, UL listed enclosure
Warranty: 12 months
LED: Four-state standard (red, green, amber, and off), installer switchable, as well as Power (blue) and Channel (green)
Transmitters: Supported WRT-2+ (all variants)
WRT-4+ (all variants)
