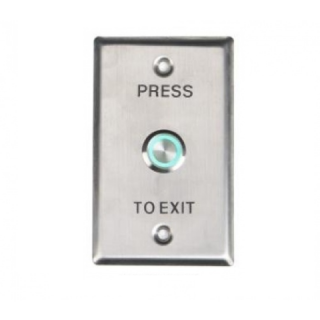

Request to Exit Button, Stainless Steel, Wall plate Mount with LED

Mechanical series:
→ Strong and durable SUS304 stainless steel button and panel design which resists strong acid and alkali.
→Suitable for hollow door frame and electrical box use. Voltage of DC12V±20% for LED.
→The front of the detector is waterproof design with IP65 and above.
→Custom-made micro-switch according to user’s requirements (such as waterproof or currents).
→Operation temperature range: -20℃~ 60℃. Humidity 85%Rh max.
→Mechanical life:1,000,000 cycles.
→Contact rating: 5A@250VAC N.O./N.C. Output.

• Dimensions:  115X70X26(mm)
• Weight: 126g
