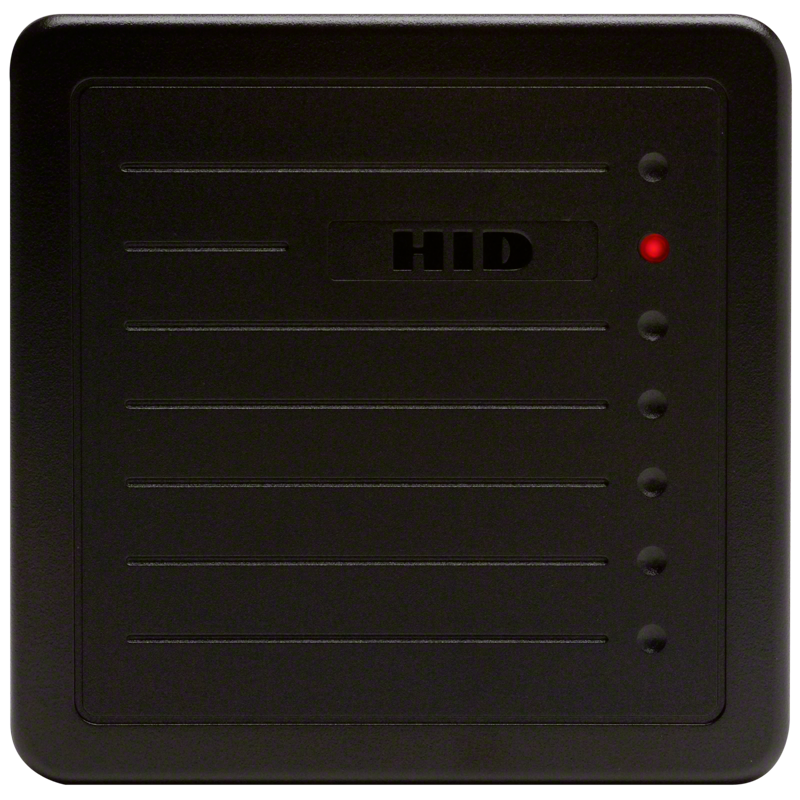

HID ProxPro II Medium Range Reader

HID’s ProxPro® II proximity reader for access control combines performance, reliability, and ease of installation into a two-piece, weatherproof potted enclosure. International users will appreciate the multilingual installation manual, lower voltage requirement and flexible mounting options.

• Ideal for medium-range applications.
• Available with Wiegand or Clock-and-Data interface.
• Optional glass mount kit available for mounting the reader behind glass.
• Potted reader suitable for indoor or outdoor use.
• Available in black, white, grey or beige.
• 18″ (45 cm) wire pigtail standard; consult factory for 9′ (2.7 m) pigtail available by special order.

Key Features

• Two-piece reader design allows for easy installation.
• Available with a Wiegand or Clock-and-Data interface.
• Provides high reliability, consistent read range and low power consumption.
• Features include multicolour LED and internal control or host control of the LED and beeper.
• Mounts directly on metal with minimal impact on the read range performance. Optional kit enables mounting behind glass.
• Compare features of the ProxPro II to the original ProxPro reader

Typical Maximum Read Range
ProxCard® II Card – up to 9″ (22 cm)
ISOProx® II Card – up to 8″ (20 cm)
DuoProx® II Card – up to 8″ (20 cm)
Smart ISOProx® Card – up to 8″ (20 cm)
Smart DuoProx® Card – up to 8″ (20 cm)
HID Proximity and MIFARE® card – up to 8″ (20 cm)
ProxCard® Plus Card – up to 4″ (10 cm)
ProxKey® II Keyfob – up to 4″ (10 cm)
MicroProx® Tag – up to 4″ (11 cm)

*Depending on local installation conditions.

Dimensions
12.7 x 12.7 x 2.54 cm

Power supply
5-16 VDC
Linear power supplies are recommended.

Cable Distance
Wiegand interface: 150 m
Clock-and-Data interface: 15 m
Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.

Current Requirements
Average: 25 mA at 12 VDC
Peak: 125 mA at 12 VDC

Operating Temperature
-30º to 65º C

Operating Humidity
0-95% relative humidity non-condensing

Weight
13.6 oz. (385 g)
