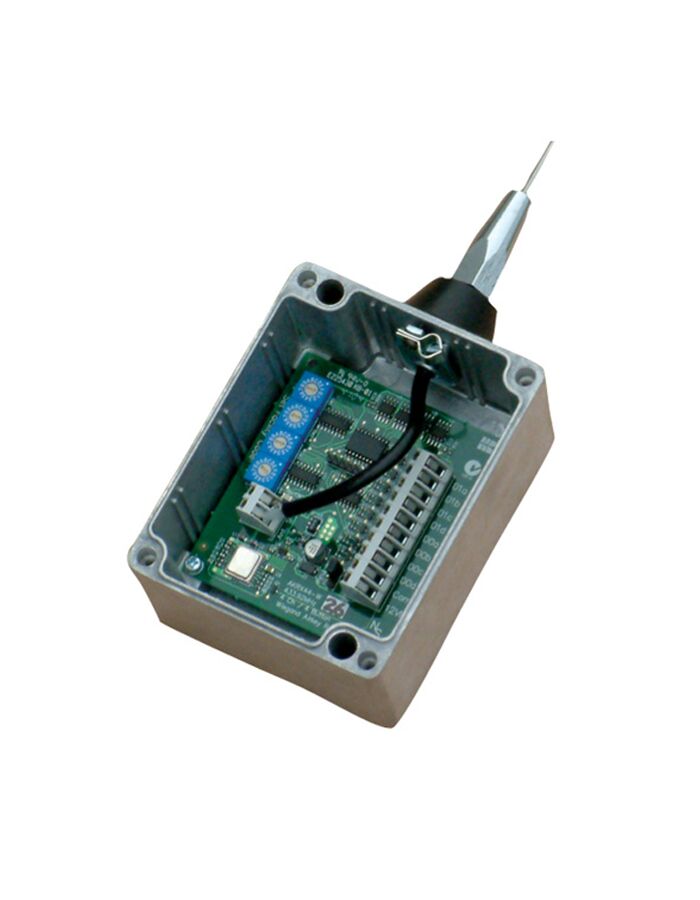

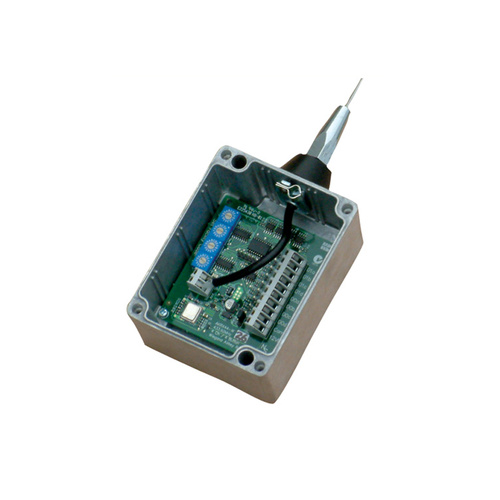

Airkey AKRX64-W26 Receiver 6 Channel – 26Bit

Airkey AKRX64-W26 Receiver 6 Channel – 26Bit The AKTX2-W26, AKTX4-W26, AK2TX4-W26, AK2TX6-W26 remote control and AKRX64-W26 is one of the highest security wiegand remote control systems available today. This system is aimed at multi-residential, commercial and industrial remote control applications which up until now have been hopelessly lacking in any intrinsic security whatsoever. Conventional systems transmit the same code from a transmitter every time a button is pushed. The relative number of code combinations for a low end system is also a relatively small number. These shortcomings provide the means for a thief to create a device that ‘grabs’ a transmission and re-transmits it later or a device that scans all possible combinations until the correct one is found. Given the small number of code combinations (at most several thousand), and the high rate at which codes can be transmitted, it can be a matter of only seconds before a correct code is transmitted - even if all codes are used. The AKTX4 employs sophisticated code hopping technology and an encryption algorithm to achieve an extremely high level of security. Code hopping is a method by which the code transmitted from the transmitter to the receiver is different every time a button is pushed. This method, coupled with a transmission length of 69 bits, virtually eliminates the use of code ‘grabbing’ or code ‘scanning’. Features

• Can be used to in parallel with any 26 bit wiegand proximity readers.
• 4 pairs of wiegand outputs provide separate card reads for each of the Airkey’s four buttons.
• Self-learing and self-synchronizing receiver technology fully implements independent rolling key encryption for all 65536 possible card numbers within any one site code.
• Site / facility code selection by simple rotary switches ensures non matching site code transmitter transactions are not passed to the access control system. Compatibility with 2 and 4 channel Airkeys allows for maximum flexibility.
