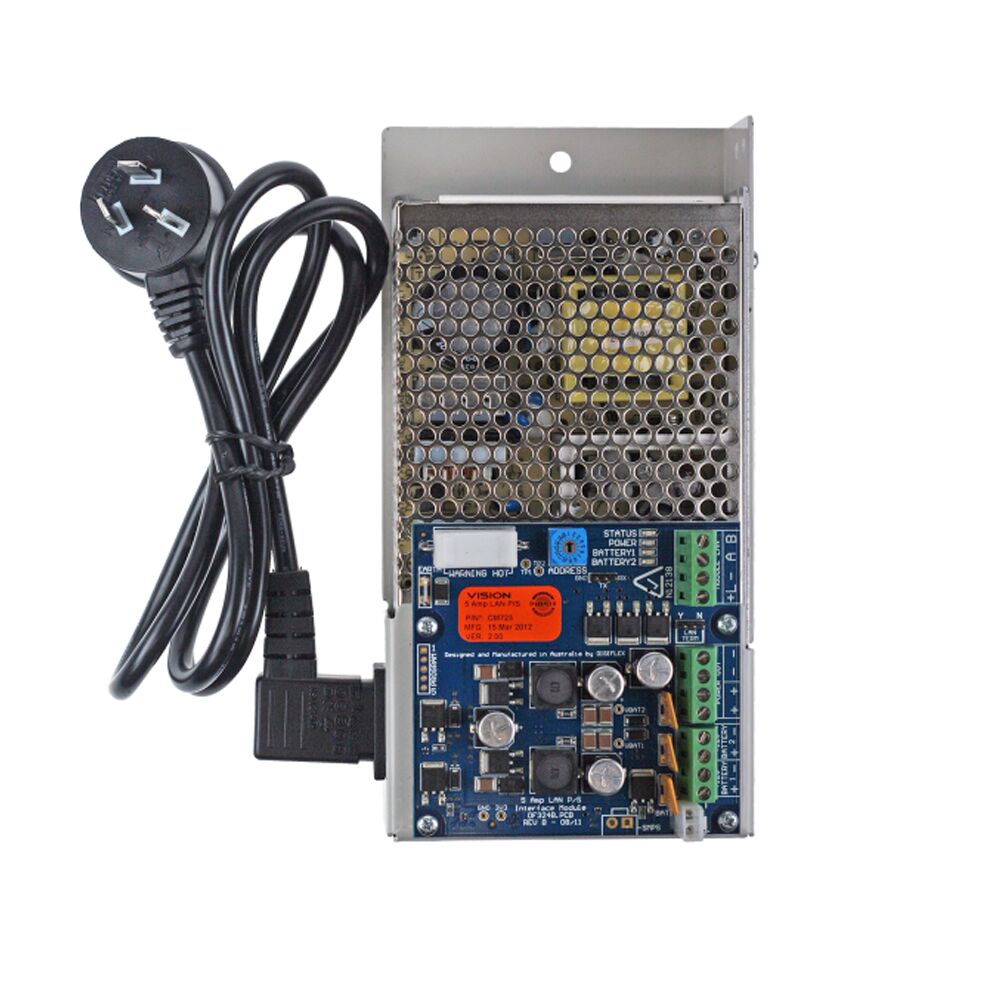

Bosch CM723B 5A Power Supply Module (E43078)

SKU:CM723B

Please login or register to view pricing.


Bosch 5A Power Supply Module (CM723B) The CM723B LAN Power Supply is a high efficiency 13.8V DC, 5Amp continuous rated switch mode power supply with two independent battery chargers. The battery chargers can be configured to charge one or two 7.2Ah batteries, or for longer standby times they can be combined to charge a single 18Ah sealed lead battery. Two power output terminals are provided to simplify wiring to ancillary equipment and these are protected with a self resetting fuse. Power Requirements Voltage Input: 100-240V AC @ 2.0A 50-60Hz Stand-by Battery: Up to 2 x 12V DC 7.2Ah sealed rechargeable battery Panasonic LC-P12R2P or equivalent or 1 x 12V DC 18Ah sealed rechargeable battery Resettable fuse protected @ 6 Amps Voltage Output: 13.8V DC @ 5 Amps (Primary supply source only) Battery Discharge Cycle: AC Off: Keypads indicate trouble condition, AV Fail report resent (if programmed) 13.8V DC :Charging level 11.5V DC: Low battery trouble at keypads, low battery report sent (if programmed) 10.0V: DC Shut down and battery disconnected as voltage falls below 9V DC. Battery Recharge Cycle: AC On: Panel restarts, battery charging begins. AC trouble clears from keypads, AC restore report sent (if programmed). 12.8V DC: Battery trouble clears from keypads, battery restore report sent (if programmed). 13.8V DC: Battery float charged. Connections Connection (RS485 LAN): Max total LAN length using multi strand security cable = 300m Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m Environmental Considerations Temperature: 0° to 55°C Operating Humidity: 5% to 85% at 30°C non condensing Enclosure Dimensions: 50(W) x 23(D) x 58(H)mm Warranty: 3 years

(CM723B)

SKU CM723B
Brand Bosch
Unit Of Measure Each
Assembled Length 0.400m
Assembled Height 0.100m
Assembled Width 0.300m
Type Stock
