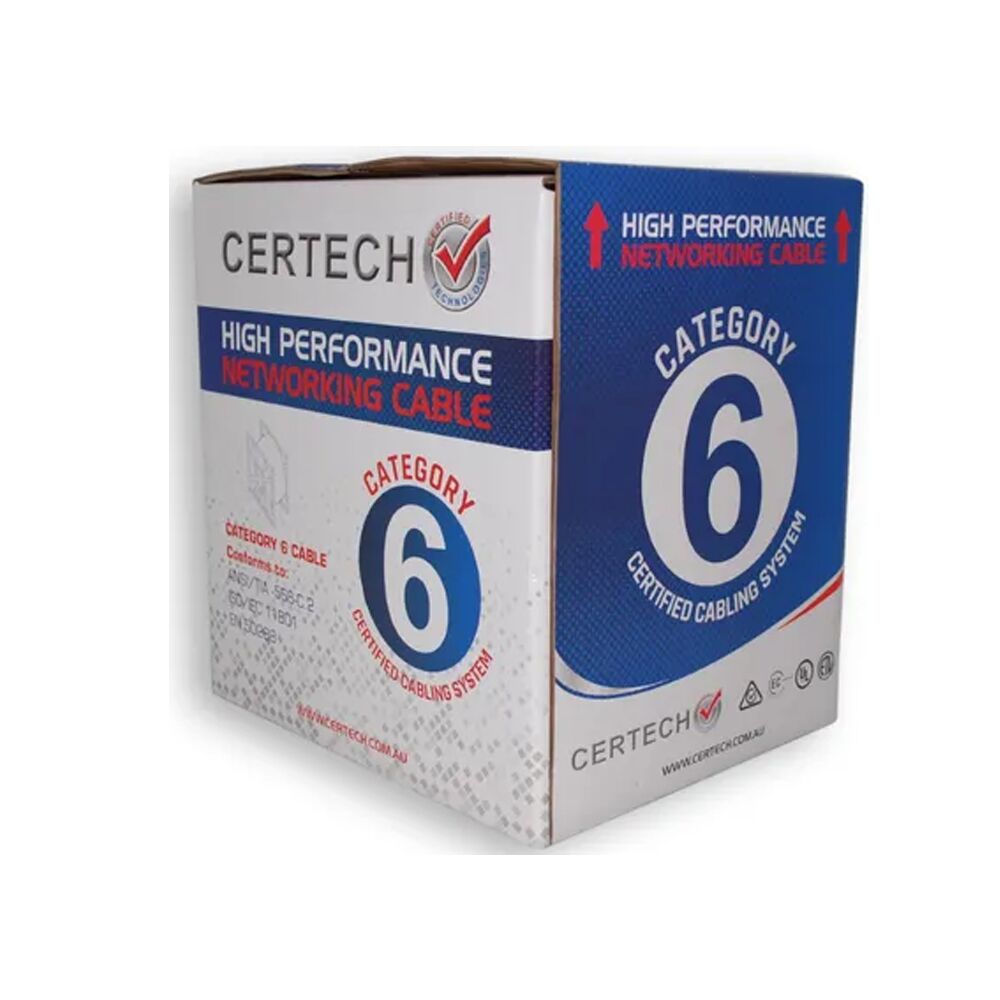

Cat6 Blue UTP Solid Cable Roll 250MHz - 305m - LSZH Jacket

SKU:E50017-LSZH

Price On Application
Cat6 Blue UTP Solid Cable Roll 250MHz - 305m - LSZH Jacket 305m Cat6 Blue UTP Solid Cable Roll 250MHz 100% Bare Copper Cable 23AWGx4P LSZH Jacket AS/CA S008:2010 Approved 4K UHD Ready   Specifications Cable Type: UTP Jacket Material: LSZH Conductor Material: Bare Copper Cable Insulation Material: HDPE Cable Length: 305m Cable Weight: 13.1kg/305m Cable Diamater: 0.55 Cable Gauge: 23AWG Jacket Thickness: 0.55±0.05mm DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0% DC Resistance (Max.): ≤9.38Ω/100m Dielectric Strength (Max.): DC 1000V 1min No Breakdown Mutual Capacitance at Frequency: ≤5.8nF/100m NVP: 69% Operating Frequency: 250MHz Flame Test Method: IEC60332-1-2 Installation Temperature: -20 ~ +60 degrees celcius Operating Temperature: -40 ~ +75 degrees celcius Packaging: Reel in Box

(E50017-LSZH)

SKU E50017-LSZH
Brand Generic
Unit Of Measure Each
Type Stock
