CS Technologies Evolution 12 Input, 4 Relay Expansion Board (E34009)

SKU:CS4270

Please login or register to view pricing.

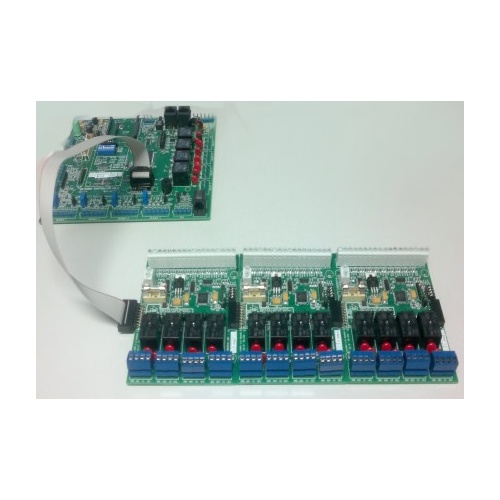

CS Technologies Evolution 12 Input, 4 Relay Expansion Board
12 Monitored Inputs and 4 Relay Expansion Board for EVO Controllers. It connects to the controller using the included ribbon cable. Up to 5x Alarm Expansion Boards can be connected to the one EVO controller. Each Board adds 12 monitored four state inputs.
    • Open, Closed, Open Circuit, Short Circuit
    • Install with 2x 10k resistors
    • Input Monitoring can be turned off via software.
Each Board adds 4 additional C-Form Relay Outputs. Each Relay has a 'Normally Open' and Normally Closed' Contact. Maximum 24 volts DC to be switched by each relay. Can NOT be connected and combined with 16-Way Expansion Boards to the same EVO controller. Requires Version 3.5 Board.

(CS4270)

SKU CS4270
Brand CS Technologies
Unit Of Measure Each
Type Stock
