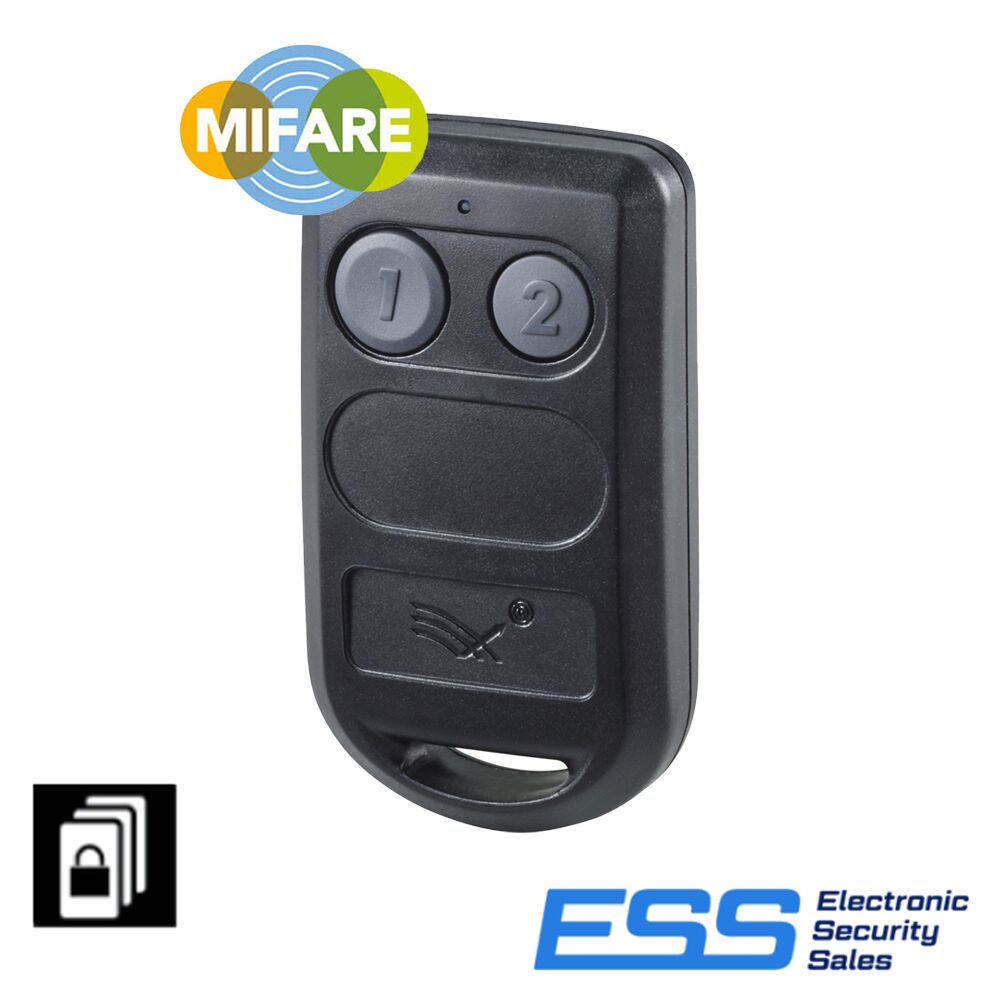

Farpointe LR 2 Button TX with Mifare 1K - MAXsecure

SKU:E13035MM

Please login or register to view pricing.


Farpointe LR 2 Button TX with Mifare 1K Chip - MAXsecure Ranger from Farpointe Data sets the electronic security benchmark for high frequency, long-range identification Receivers and Transmitters. Based upon proven contactless digital ultra high frequency (UHF) technology, the Ranger Receivers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. They offer value-add features such as MAXSecure™ and up to 200 feet of read range (WRR-44). Additionally, Ranger Transmitters are active devices, powered by the most reliable and common battery, and equipped with a potted proximity or contactless smartcard module. The modules can be ordered to support several proximity reader technologies and allow the Transmitter to be used as a close-range credential.
Specifications WRT-2+ & WRT-4+
Technology Long range
Frequency Button press 433 MHz
Presentation 125 kHz or 13.56 MHz
Marking Date code and ID
Dimensions 37 mm × 63.5 mm × 14.2 mm
Button Press Transmission Rolling code + encryption
Weight 20 g
Certifications FCC, ICC, CE, UL Standard 294 (WRT-4+)1
IP Code2 IP65
Battery Single replaceable CR2032, 3.3V, lithium battery
Compatibility Button press WRR-44 and WRR-22 Receivers
Presentation Pyramid readers and others
Read Range 4 Button press Up to 200 feet (61 m) Presentation: Up to 3.5 inches (88 mm)
 Durability Electronics sealed in a weather-resistant enclosure
Interface Wiegand (26-bit industry standard and custom Wiegand formats)
Operating Temperature –40° F to 122° F (–40° C to +50° C)
Enclosure Color Black polycarbonate enclosure with gray ABS keys OEM Label Area
Dimensions 0.9" W × 0.35" H (22.86 mm × 8.89 mm), with corner radius of 0.63" (16 mm) Key Ring6 Optional 1-inch (25 mm) key ring
Warranty 1-year limited warranty
Convenience Built-in eyelet makes it easy to carry on a key ring or lanyard LED Integrated red LED standard (activated upon button press)
Transmitters Models WRT-2+ (2 buttons labeled 1 & 2) WRT-4+ (4 buttons labeled 1 through 4)
Presentation Insert Interoperability7 WRT-2+ or WRT-4+: Supports 125-kHz Pyramid Series Proximity® protocols8 WRT-2+H or WRT-4+H: Supports certain HID® 125-kHz Proximity protocols9 WRT-2+A or WRT-4+A: Supports certain AWID® 125-kHz Proximity protocols10 WRT-2+S1 or WRT-4+S1: Supports certain MIFARE® Classic 1K 13.56-MHz Smartcard protocols11 WRT-2+S4 or WRT-4+S4: Supports certain MIFARE® Classic 4K 13.56-MHz Smartcard protocols11


(E13035MM)

SKU E13035MM
Brand Farpointe
Unit Of Measure Each
Type Stock
