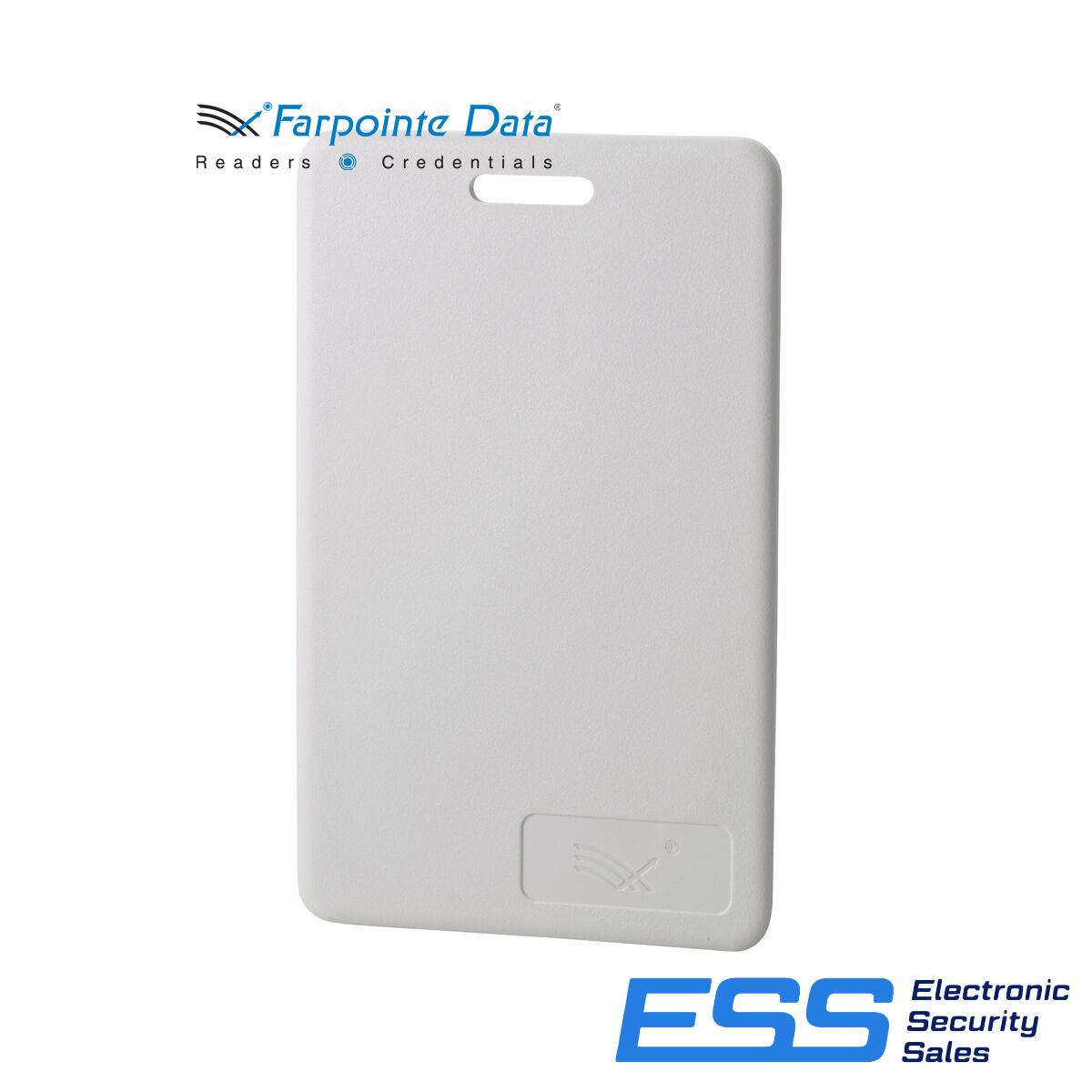

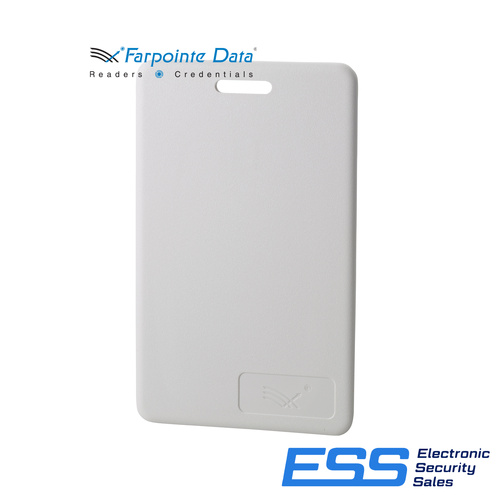

Farpointe PSC-1 Clamshell Card (E13011)

SKU:PSC-1

Please login or register to view pricing.


Farpointe® PSC-1 Clamshell Card Pyramid Series Proximity® from Farpointe Data sets the electronic security benchmark for 125-kHz proximity readers, cards, and tags. Based upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. They offer value-add features such as MAXSecure™ and fleaPower™, and can be ordered to support several proximity card and tag technologies. Additionally, Pyramid cards and tags are passive devices, eliminate maintenance by requiring no battery, and can be ordered to support several proximity reader technologies. Specifications PSC-1 Technology: Proximity Frequency: Excitation (125 kHz) Operation: Passive (no battery) Type: Clamshell card Formats: Wiegand (26-bit and custom formats) and ABA Track II magnetic stripe (clock and data) Material: ABS Colour Off-white Slot: Punch1 Standard, vertical slot Marking2: Date code and ID Imaging3: Use a glossy adhesive overlay for color dye sublimation printing or print directly on card Read Range4: Up to 8 inches (202 mm) Technologies Supported: PSC-1: Pyramid Series Proximity® supported5 PSC-1-H: Certain HID® 125-kHz Proximity protocols supported6 PSC-1-A: Certain AWID® 125-kHz Proximity protocols supported7 Options8: Custom printing of company logos, URL, telephone number and more Warranty: Limited lifetime warranty Dimensions: 2.2" W × 3.4" H × .06" D (56 mm × 86 mm × 1.5 mm) Weight 0.3 oz (9 g) Operating Temperature: –35° F to 122° F (–37° C to +50° C) Humidity: 0–95% non-condensing

(PSC-1)

SKU PSC-1
Brand Farpointe
Unit Of Measure Each
Type Stock
