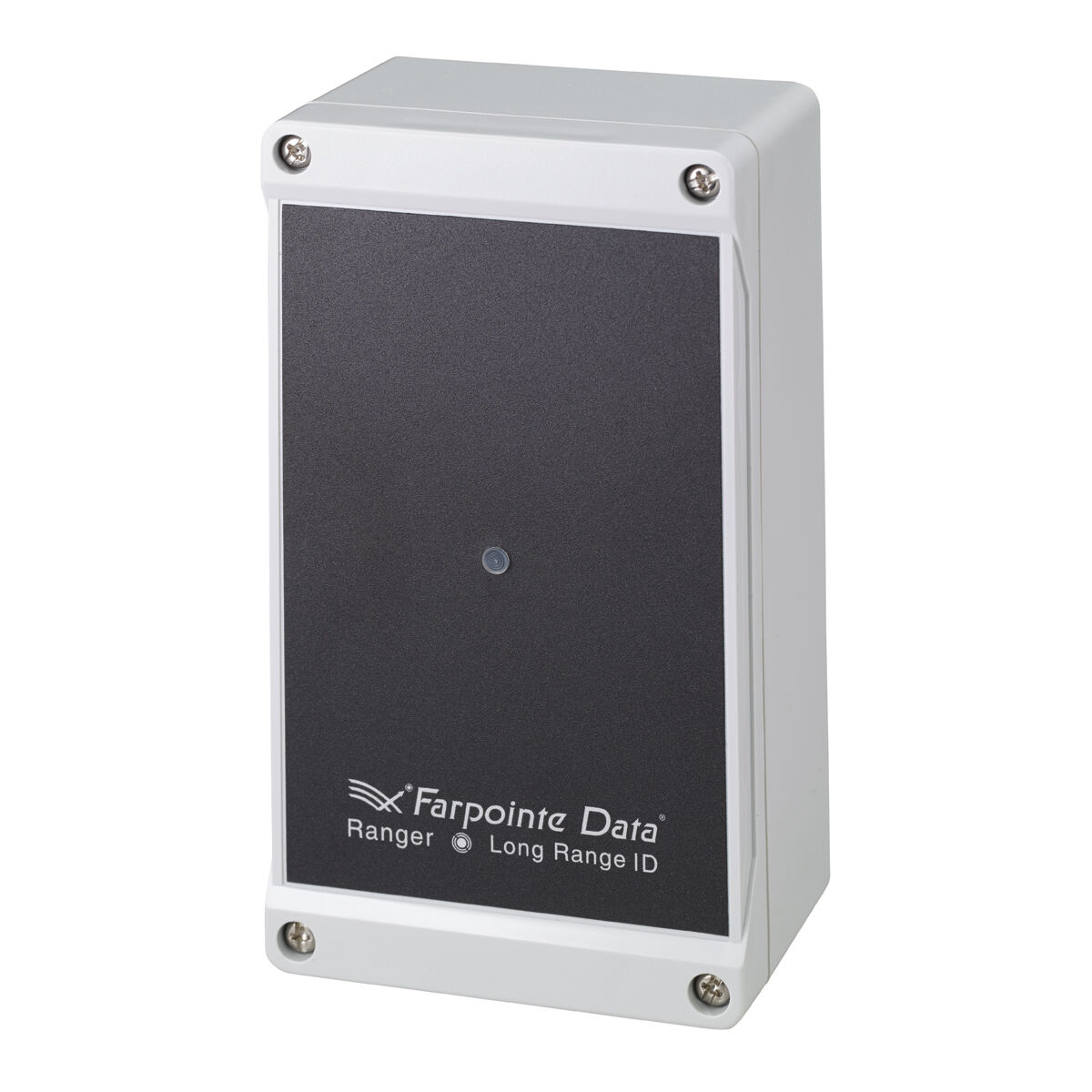

Farpointe Ranger 4 Channel Long Range RX (E13021)

SKU:WRR-44

Please login or register to view pricing.


WRR-44 LONG-RANGE RECEIVER Ranger from Farpointe Data sets the electronic security benchmark for high frequency, long-range identification Receivers and Transmitters. Based upon proven contactless digital ultra high frequency (UHF) technology, the Ranger Receivers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. They offer value-add features such as MAXSecure™ and up to 200 feet of read range (WRR-44). Additionally, Ranger Transmitters are active devices, powered by the most reliable and common battery, and equipped with a potted proximity or contactless smartcard module. The modules can be ordered to support several proximity reader technologies and allow the Transmitter to be used as a close-range credential.
Specifications WRR-44
Technology Long range
Frequency 433 MHz
Mounting 1 USA/European wall box or any flat surface
Dimensions 86.4 mm × 160 mm × 58.4 mm
Transmission Rolling code + encryption
Weight 340 g
Certifications FCC, ICC, CE, UL Standard 2942
IP Code3 IP65
Voltage 4-12 VDC nominal
Current Draw 120 mA typical @ 12 VDC
Read Range 5 Up to 200 feet (61 m), installer adjustable
Cabling 6-24 AWG minimum, multiconductor stranded with an overall foil shield
Interface 7 Wiegand (26 bit industry standard and custom Wiegand formats)
Operating Temperature –40° F to 149° F (–40° C to +65° C)
Enclosure Colour Off-white plastic enclosure with black label
Audio Tone Beeper included standard, installer switchable
Indoor & Outdoor Installation Electronics sealed in a weather-resistant, UL listed enclosure
Warranty 12 months
LED Four-state standard (red, green, amber, and off), installer switchable, as well as Power (blue) and Channel (green)

(WRR-44)

SKU WRR-44
Brand Farpointe
Unit Of Measure Each
Type Stock
