HCR-100 Kit, 4 Channel RX and 2x HCT-4 Keyfobs

SKU:E17011KIT

Please login or register to view pricing.

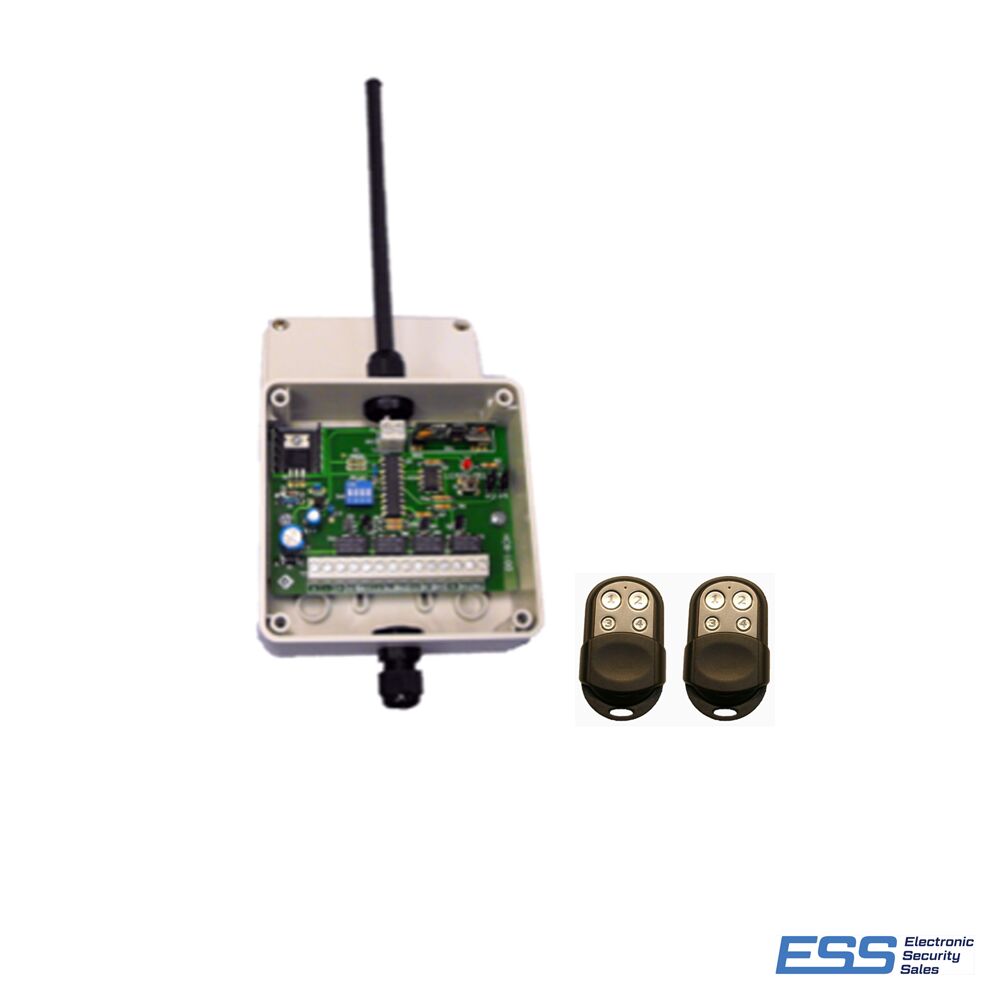

HCR-100 Kit, 4 Channel RX and 2x HCT-4 Keyfobs The HCR-100 is a general purpose 433.92Mhz Keeloq (TM) rolling code receiver with four (4) SPDT relay outputs available to control external devices. The 4 relays can each be programmed to work with different buttons on individual remote controls. The relays are also programmable via a DIP switch for momentary, latching or timed control. This receiver can be powered from 12 to 24V AC or DC. The HCR-100 is housed in an IP56 water resistant enclosure for weather protection making it ideal for any outdoor application. Specifications Operating Voltage: 11 to 30VDC, 11 to 24VAC Current Consumption: @ 12VDC Standby 15mA, All relays 60mA @ 24VDC Standby 23mA, All relays 72mA @ 24VAC Standby 82mA, All relays 190mA Physical Dimensions IP56 Case 100mm x 100mm x 50mm Antenna tube 150mm Output Channels 4 Output Ratings SPDT relay 1 Amp switching maximum @ 24VDC. Contacts are voltage free. Reverse Polarity Protection Yes ( diode) RF Operating Frequency 433.92mhz Receiver type Super heterodyne narrow band RF Signal Type ( Data Transfer) On Off Keying ( OOK) Keeloq TM Code Hopping Coding Combinations 4.2 billion Learning Capacity ( RF Devices ) 900 fobs Country of Manufacture Australia

(E17011KIT)

SKU E17011KIT
