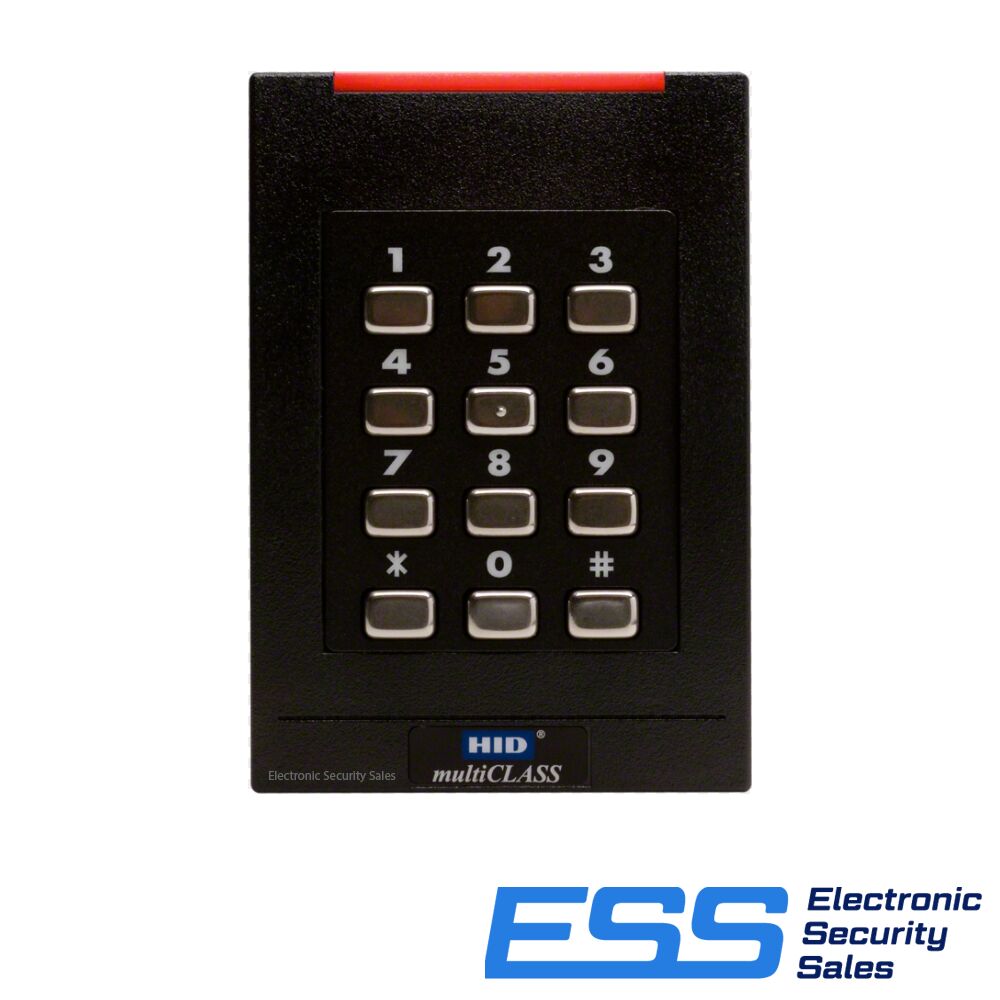

Indala RPK40SE iClass Multitech Reader with Keypad

SKU:E12026

Please login or register to view pricing.


Indala RPK40SE iClass Multitech Reader with Keypad POWERFULLY SECURE:
  •  Multi-Layered Security – Ensures data authenticity and privacy through the multi-layered security of HID’s SIO.
  •  EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations.
  •  SIO Data Binding – Inhibits data cloning by binding an object to a specific credential. Secured communications using OSDP with Secure Channel Protocol.
HIGHLY ADAPTABLE:
  • Mobile device support using card emulation - Enables HID access control. SIO Portability – Provides technology independence and portability to other smart card technologies.
  • Upgradeable Hardware Connection – Allows all Wiegand-based communication readers to expand communication capabilities to OSDP, Hi-O and other bidirectional protocols.
  •  Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle.
  • Customization and management from a central location – Enables organization to make changes and manage all attached OSDP readers over RS485 wiring. Simultaneous support for 125kHz HID Prox, AWID and EM4102.
  •  Allows for support of future technologies. SUSTAINABILITY AND MANAGEMENT:
  •  Intelligent Power Management (IPM) – Reduces reader power consumption by as much as 75% compared to standard operating mode.
  •  Recycled Content – Contributes toward building LEED credits.
INTEROPERABLE:
  • SIO Media Mapping – Simplifies deployment of third-party objects to multiple types of credentials.
Industry standard communications using OSDP.
  • Custom programming support to read custom data models on MIFARE and MIFARE DESFire EV1 credentials.
Technical Specifications Typical Read Range: (Single Technology ID card) HID Prox: 2.8" (7 cm) Indala Prox: 2.0" (5 cm) EM4102 Prox: 3.1" (8 cm) (Single Technology Fob/Tag) HID Prox: 1.6" (4 cm) Indala Prox: 1.2" (3 cm) EM4102 Prox: 2.4" (6 cm) Dimensions: 8.5 cm x 12.2 cm x 2.8 cm Operating Voltage Range: 5-16 VDC, Linear supply recommended Current Draw - Standard Power Mode2 (mA): 95 Operating Temperature -31º to 150º F (-35º to 65º C) Storage Temperature -67º to 185º F (-55º to 85º C) Operating Humidity 5% to 95% relative humidity non-condensing Environmental Rating Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) Transmit Frequency: 13.56 MHz & 125 kHz 13.56 MHz Card Compatibility: Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™4 CSN, CEPAS4 CSN or CAN - MIFARE DESFire EV2 via EV1 backward compatibility 125 kHz Card Compatibility HID Prox4, AWID4, Indala, EM41024 Communications: Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) - Use Shielded cable for best results Panel Connection: Pigtail or Terminal Strip

(E12026)

SKU E12026
Brand Indala
Unit Of Measure Each
Type Stock
