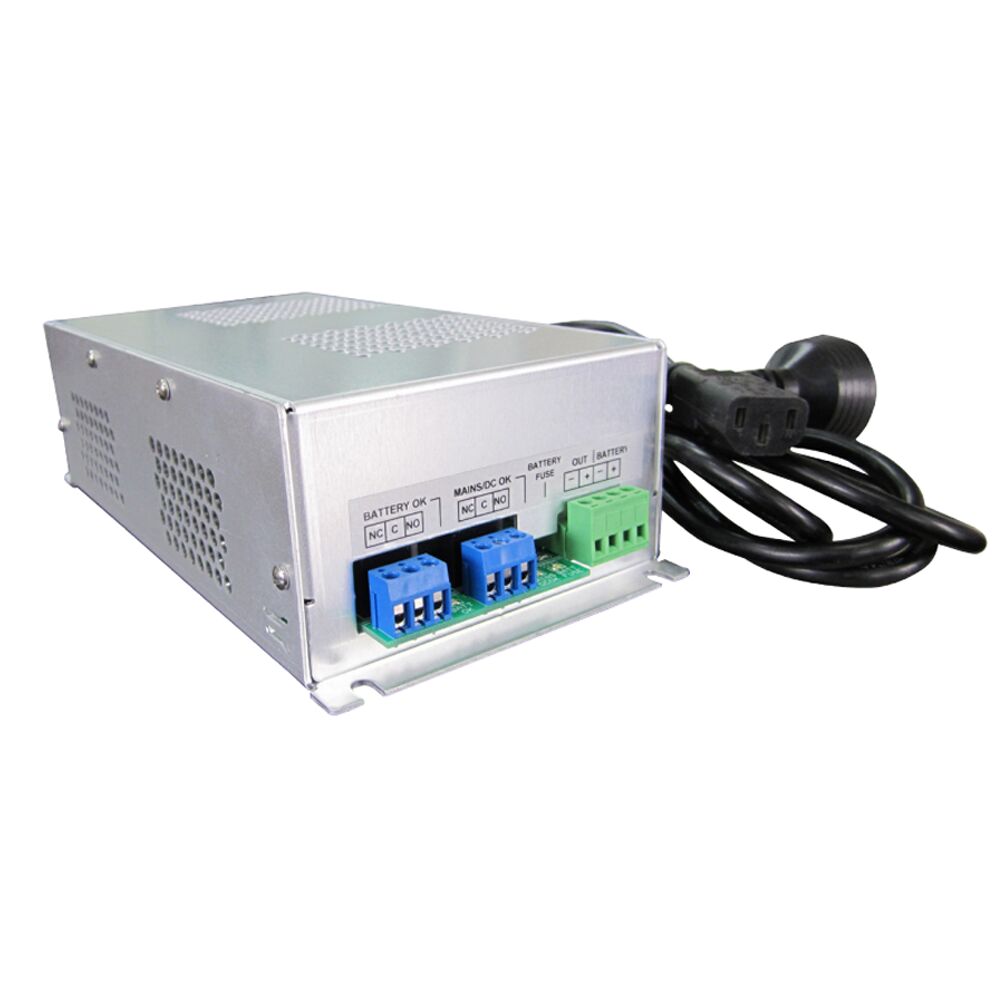

Powerbox 2S Series 13.8V - 3.5A

SKU:E27009

Please login or register to view pricing.


Powerbox 2S Series 13.8V - 3.5A Features • 13.8Vdc 3.5A and 7A power supplies with battery backup • High reliability and high efficiency industrial-grade switching power converter • Universal AC input range from 100VAC to 240VAC nominal without power derating • Light weight corrosion resistant aluminium enclosure • Output over current and short circuit protection • Separate current-limited battery charging output • Output over voltage protection • Self-resetting battery fuse • Over temperature protection • Green Mains/DC OK LED and 7A form-C alarm contact • Green Battery OK LED and 7A form-C alarm contact • Red Battery Fuse Fail LED MECHANICAL Dimensions: (LxWxH) 219 x 114 x 62mm Weight: PBB2S-13-3.5: 600g PBB2S-13-7: 900g STANDARDS & APPROVALS Safety AS/NZS60950.1, Class I Certificate NSW26927 Isolation I/P to Output 3.0 kVac, 1 min. I/P to Ground 1.9 kVac, 1 min. O/P to Ground 500 Vac, 1 min. EMC AS/NZS CISPR22 Class B ENVIRONMENTAL Operating Temp: -10°C to +70°C Power De-rating: -2.5%/°C above 40°C Cooling: Natural Convection Over temperature Protection: Automatic self-resetting PBB2S-13-3.5 13.8VDC 3.5A 3.25A 0.25A typ. PBB2S-13-7 13.8VDC 7.0A 6.0A 1.0A typ. DISPLAYS & ALARMS Mains/ DC OK Green LED: ON=OK Voltage-free changeover contact, 30VDC, 7A rating Battery OK Green LED: ON=Vbatt >11.5V OFF=Vbatt <10.5V Voltage-free changeover contact, 30VDC, 7A rating Battery Fuse Fail: Red LED: ON=FAIL Specifications INPUT Nominal Voltage 100-240VAC Current PBB2S-13-3.5: 1.3A PBB2S-13-7: 2.8A Nominal Frequency 50–60Hz Power Factor Conforms to EN61000-3-2 OUTPUT AC MAINS OPERATION Voltage 13.8VDC Current * See table * Sum of load + battery charging current. Battery Charging Current See table Ripple & Noise ** < 100mVpp ** BW=20MHz Short Circuit Protection Hiccup, non-latching Load+Battery Charging Hiccup over current protection, >120% of rated current Battery Charging Current limited taper charging Over voltage 16V +10%/-5% Hiccup

(E27009)

SKU E27009
