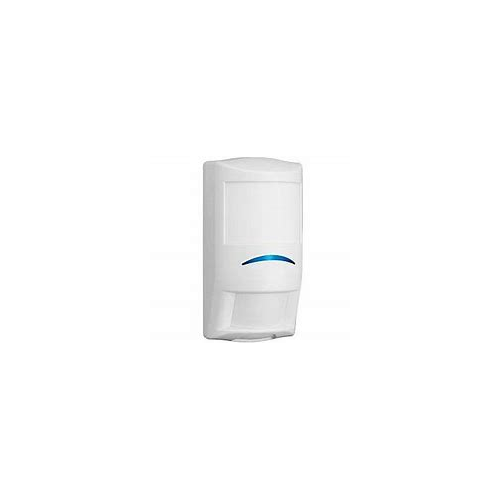

Professional Series Tritech PIR / MW 18m x 24m Coverage (ISC-PDL1-W18G)

SKU:E43064

Please login or register to view pricing.


Professional Series Tritech PIR / MW 18m x 24m Coverage (ISC-PDL1-W18G) The ISC-PDL1-WA18G Professional Series TriTech Detec-tors are exceptionally suited for commercial indoor applications. Sensor data fusion technology ensures that the detectors send alarm conditions based on precise information. Tri-focus optics eliminate coverage gaps and respond efficiently to intruders. The powerful combination of unique features in the Professional Series delivers superior catch performance and virtually eliminates false alarms.The self-locking two-piece enclosure, built-in bubble level,flexible mounting height, and three optional mounting brackets simplify installation and reduce service time.
Power Requirements Voltage (Operating): 9 VDC to 15 VDC Current (Maximum): 23 mA. Current (Standby): 13 mA
Relay Solid state relay, normally-closed (NC) contacts power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω. Tamper: Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit. Trouble: Solid-state relay normally-closed (NC) contacts.
Color White
Dimensions 5.0 in. x 2.75 in. x 2.25 in.(127 mm x 69 mm x 58 mm)
Frequency Information Radio Frequency Interference (RFI) immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 1 GHz at 50 V/m.
Environmental Rating Relative Humidity: 0 to 95%, non-condensing Temperature (Operating and Storage):-20°F to +130°F (-29°C to +55°C) For UL Certificated installations, +32°F to +120°F (0°C to +49°C)Environmental Class II EN 50130-5 Protection Rating: IP41, IK04 (EN 60529, EN 50102

(E43064)

SKU E43064
