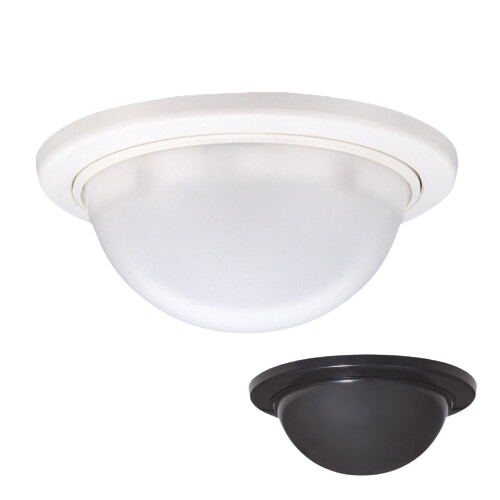

Takex PA-6810 360 Degree PIR, 15.2M Hard Wired, 10.5- 28VDC, White

SKU:PA-6810

Please login or register to view pricing.


The PA-6800 series ceiling mount PIR sensors combine a discreet compact appearance with outstanding performance at a low price. The sensor can be snapped in and out of its base unit for easy installation.

(PA-6810)

Detection system

Passive infrared

Coverage

360 degrees Round
Φ50' (Φ15.2m) Max.

Sensitive zone

33 pairs

Mounting height

6.6ft to 16ft (2m to 4.9m)

Supply voltage

10.5 to 30V DC (non-polarity)

Current consumption

25mA Max.
(+2mA at L/C use)

Alarm output

Dry contact (Semi-Conductor) (N.C. / N.O. changeover)
Reset: Approx. 2 sec., 24V (AC/DC) 0.25A
(protective resistor 3.3Ω)

Alarm memory

3 minutes flashing, 47 minutes lighting and
automatically reset

LED indicator

Red LED:
・Flashing at warming up
・Lighting at alarm (LED disabled)

Yellow LED:
・Flashing at memory activated
・Lighting at memory indication

Adjustment

N/A

Pulse count

1 / 2 / 3 / 4 changeover

Mounting position

Indoor ceiling (wall mount with optional attachment BCW-401)

Wiring

Terminals on separate base unit

Weight

3.85oz (110g)

Appearance

Body: ABS resin
Cover: PE resin

Accessory

Tapping screw: 2 pcs.
Sensor locking screw: 1pc.

Environmental Specification
Ambient temperature

+5°F to +131°F (-15°C to +55°C ) without condensation

SKU PA-6810
Brand Takex
Unit Of Measure Each
Type Stock
