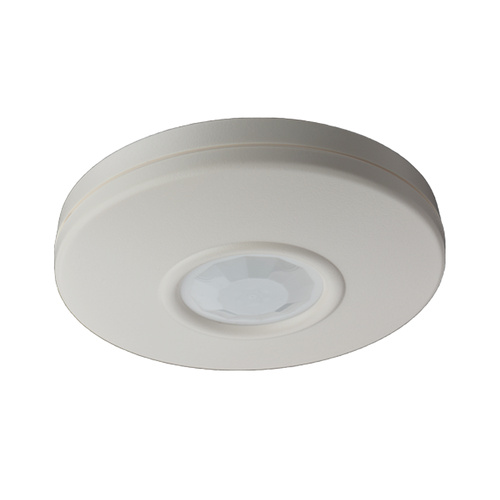

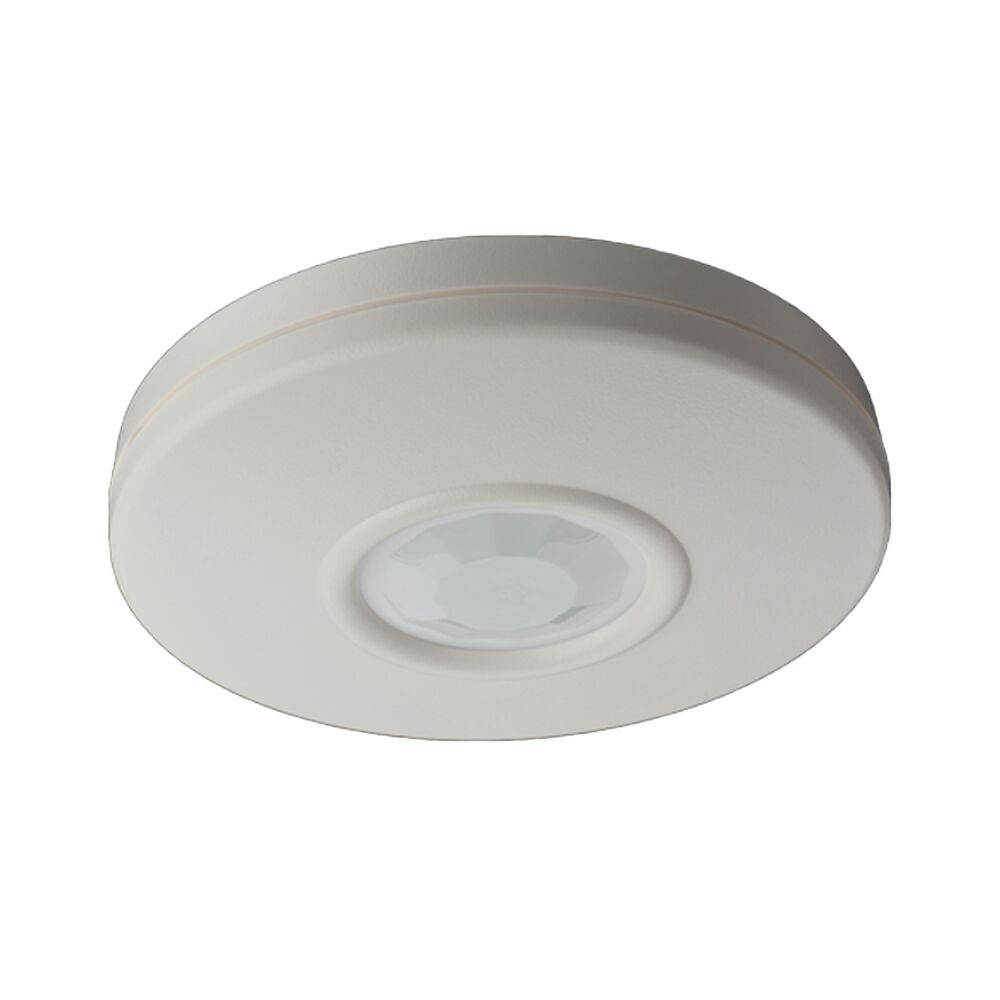

Bosch DS936 360° x 7.5m, Low Profile PIR Detector (E43073)

SKU:DS936

Please login or register to view pricing.


Bosch 360 x 7.5m, Low Profile PIR Detector (DS936) The ceiling mount, low profile panoramic DS936 PIR Detector uses alternate polarity pulse count. It also uses a pointable Fresnel lens to provide up to 7.5 m (24 ft) of coverage and can be mounted on the surface, or semi-flush directly to a ceiling or a standard octagonal electrical box. Enhanced Signal Processing Field-selectable for standard, intermediate or high. Test Features External visible alarm LED. Internal noise voltage test pins provide precise pattern location and background disturbance evaluation using a standard analog meter.

  • Enhanced signal processing
  •  360° x 7.5 m (24 ft.) pattern
  •  Surface/semi-flush mountable
  • Internal pointability, sealed detector chamber
Material High impact ABS plastic enclosure
Dimensions 3.05 cm x 11.7 cm (1.2 in. x 4.6 in.)
Temperature (operating) -29°C to +49°C (-20°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
Height range 2 m to 3.6 m (7 ft to 12 ft)
Location Surface or semi-flush on ceiling or on standard 10 cm (4 in.) octagonal electrical box
Pattern pointability ±15° rotational
Alarm Normally-closed reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common C leg.
Tamper Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum.
Current 20 mA at 12 VDC
Voltage 10 VDC to 15 VDC

(DS936)

SKU DS936
Brand Bosch
Unit Of Measure Each
Assembled Length 0.120m
Assembled Height 0.040m
Assembled Width 0.118m
Type Stock
