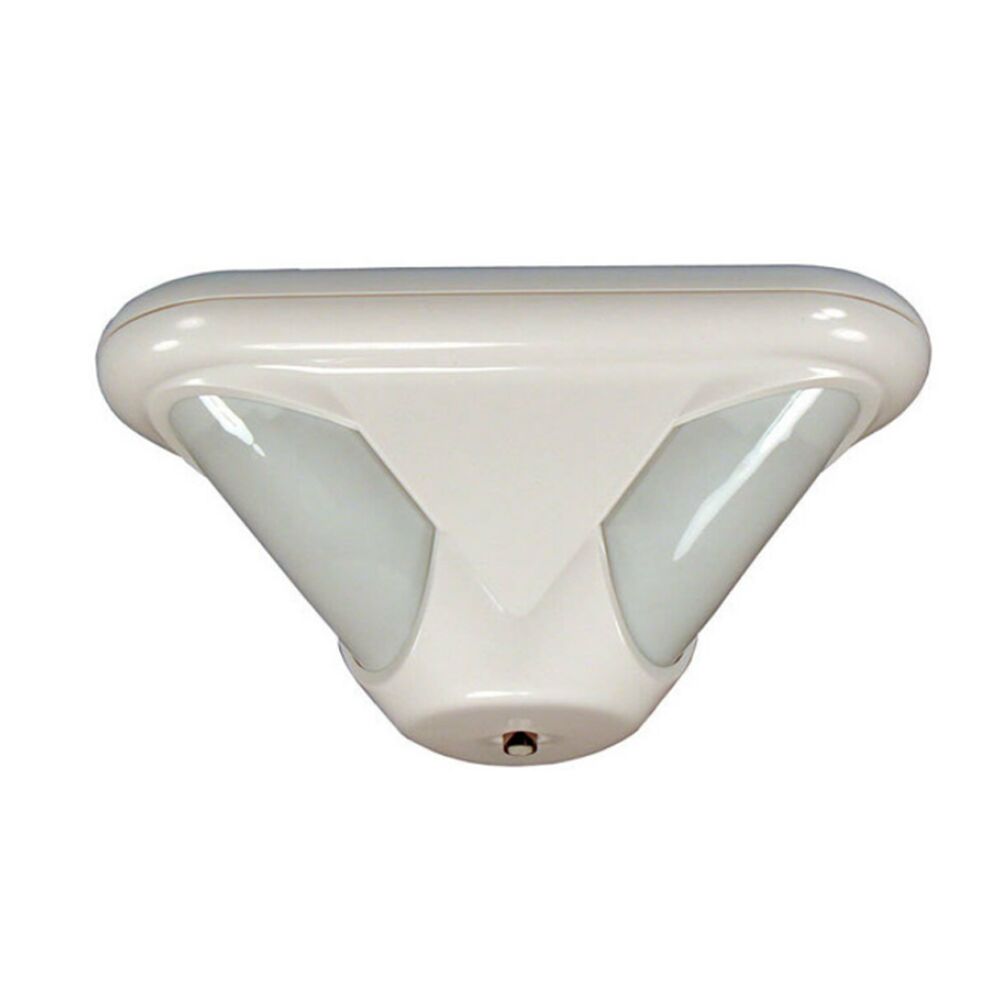

Bosch DS9370 360 x 21m, Tritech Mirror PIR/Microwave Detector (E43219) - High Performance Panoramic

SKU:DS9370

Please login or register to view pricing.


DS9370 Series Panoramic TriTech Ceiling Mount Detector Each DS9370 Series TriTech PIR/Microwave Doppler radar Motion Detector model is panoramic and uses several patented processing techniques to provide excellent catch performance with freedom from false alarms. Each model can be mounted on ceilings as high as 6.1 m (20 ft). With three separate PIR sections that are fully adjustable, the DS9370 Series provides coverage integrity at all mounting heights, plus the ability to customize the coverage for specific areas.

  • Up to 6.1 m (20 ft) mounting height
  • Fully adjustable optics for coverage integrity and customization
  • Hinged chassis and base plate for easy installation
  • High efficiency LED and light pipe system for easy walk testing
  • First Step processing, or FSP
Design Modular chassis and hinged mounting base design provide easy access to field setup switches and wiring.
Dimension 8.9 cm x 17.8 cm (3.5 in. X 7 in.)
Material High impact ABS plastic enclosure
Operating Temperature -40°C to +49°C (-40°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
Height Range 3 m to 7.6 m (8 ft to 25 ft) recommended
Location Mounts directly to ceiling or to standard 10.2 cm (3.5 in.) octagonal electrical box.
Alarm Form C Solid State relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads.
Tamper Cover and ceiling tamper. Normally Closed (with cover in place) tamper switch. Contacts rated at 28 VDC, 125 mA maximum.
Current 19 mA standby, 39 mA in alarm.

(DS9370)

SKU DS9370
Brand Bosch
Unit Of Measure Each
Assembled Length 0.210m
Assembled Height 0.096m
Assembled Width 0.170m
Type Stock
