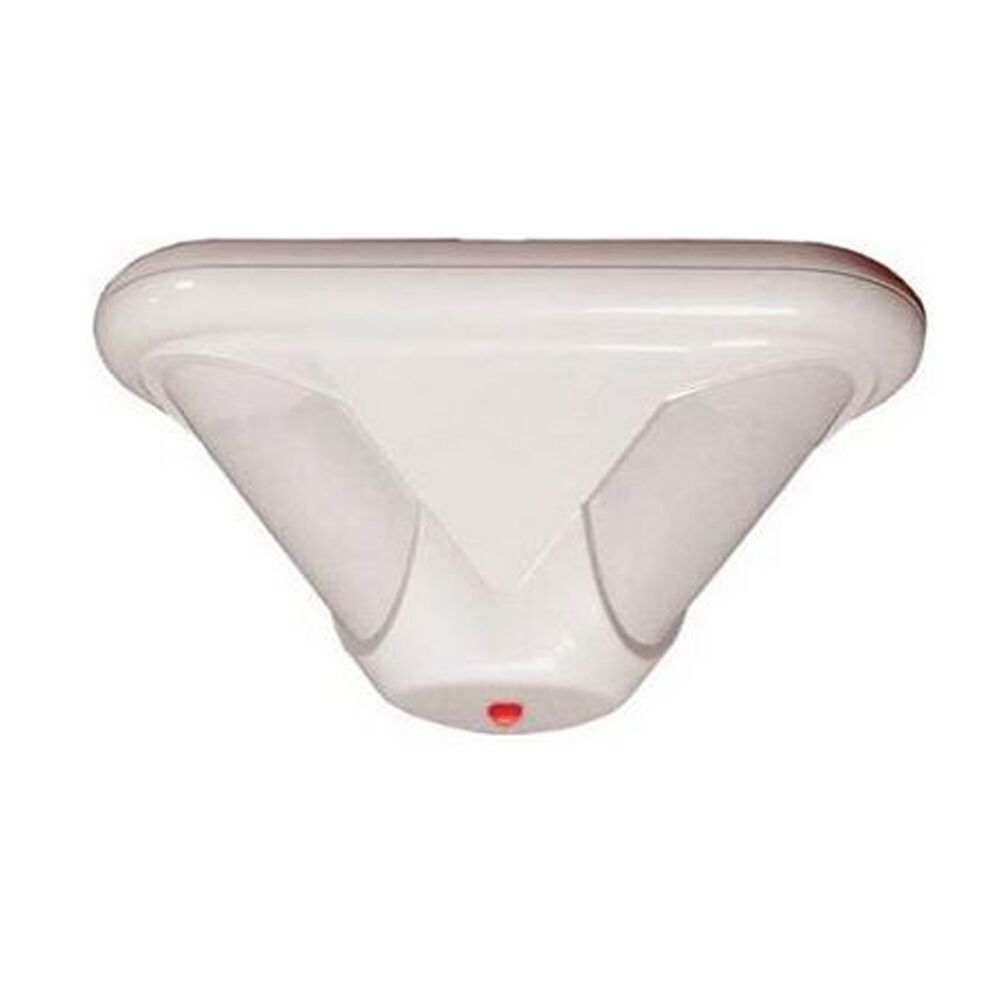

Bosch DS939 360? x 21m, PIR Detector (E43275)

SKU:DS939

Please login or register to view pricing.


Bosch DS939 Series Panoramic Detector (DS939) The ceiling mount DS939 PIR Detectors provide up to 16.4 m (54 ft) panoramic coverage pattern and can be mounted on ceilings as high as 6.1 m (20 ft). With three separate PIR sections that are fully adjustable, the DS939 detectors provide coverage integrity at all mounting heights, plus the ability to customize the coverage for specific areas. The DS939 detectors use several patented processing techniques to provide excellent catch performance with freedom from false alarms.

  • Up to 6.1 m (20 ft) mounting height
  • Fully adjustable optics for coverage integrity and customization
  • Hinged chassis and base plate for easy installation
  • High efficiency LED and light pipe system for easy walk testing
  • First Step Processing (FSP)
Properties: Modular chassis and hinged mounting base design provide easy access to field setup switches and wiring.
Dimensions: 8.9 cm x 17.8 cm (3.5 in. x 7 in.)
Operating Temperature: -40°C to +49°C (-40°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Sensitivity: Low/High gain settings
Height Range: 3 m to 6.1 m (8 ft to 20 ft) recommended
Location: Mounts directly to ceiling or to standard 10.2 cm (4 in.) octagonal electrical box.
Internal Pointability: Coverage is adjustable ±10° horizontally, +2° to -18° vertically.
Alarm Relay: Silent-operating form C relay. Contacts rated 125 mA, 28 VDC, 3 W maximum for DC resistive loads.
Tamper: Normally-closed (with cover in place) tamper switch. A wall (base) tamper is included. Contacts rated at 28 VDC, 125 mA, 3 W maximum.



Current: 12 mA standby; 39 mA in alarm with LEDs enabled
Voltage: 9 VDC to 15 VDC



(DS939)

SKU DS939
Brand Bosch
Unit Of Measure Each
Assembled Length 0.214m
Assembled Height 0.106m
Assembled Width 0.178m
Type Stock
