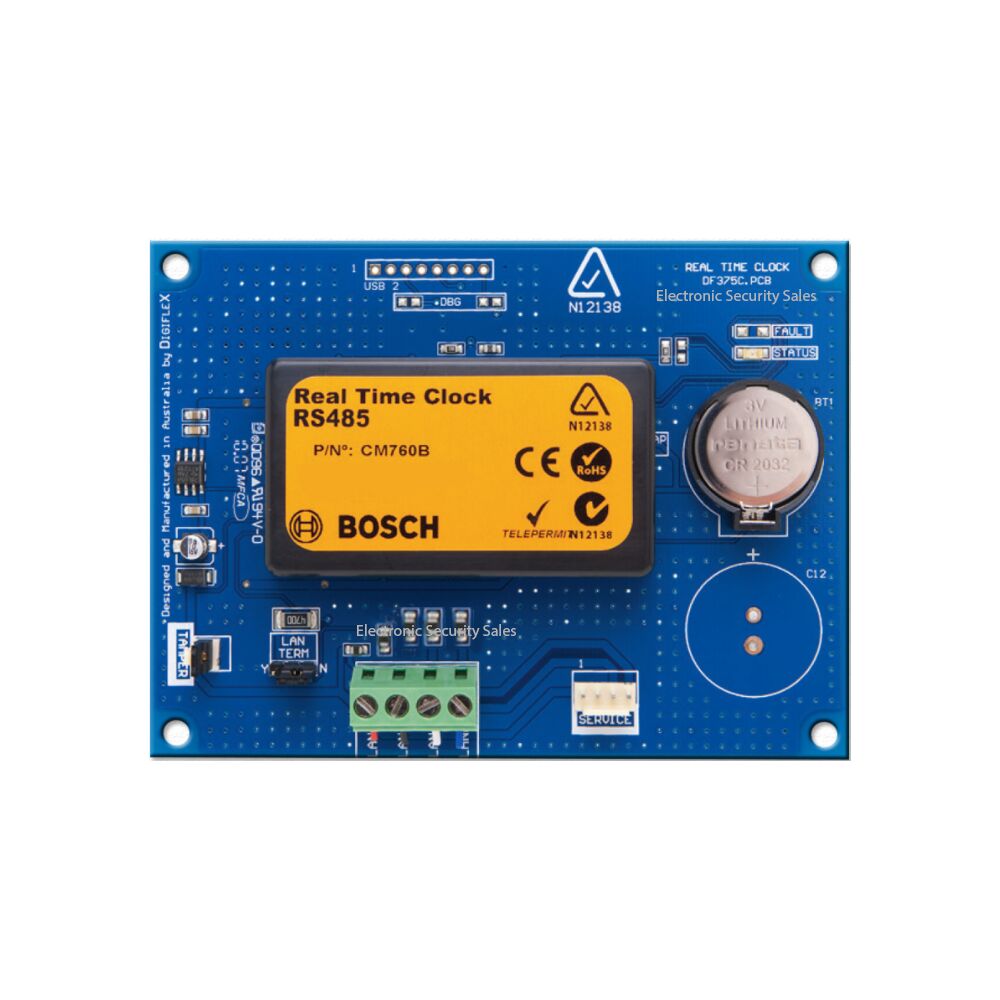

Bosch Real Time Clock Interface Module (CM760B) (E43077)

SKU:CM760B

Please login or register to view pricing.


Bosch Real Time Clock Interface Module (CM760B) The CM760B is a low-cost, extremely accurate real time clock (RTC) with batter backup and maintains accurate timekeeping even when the main power to the module is interrupted. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap years.

  • Accuracy better than =/- 2 minutes / calendar year
  • Simple RS485 LAN connection to control panel
  • Local low battery fault indicator and dedicated tamper input
  • LAN monitored, encrypted data and anti-substitution
  • Service keypad connection point included
Power Requirements Operating Voltage 10.5V DC – 14.0V DC @ 50mA Standby
Battery Type 3V Lithium button cell type (CR2032 size)
Battery Life Approx. 3 years
Connections Module Connection (RS485 LAN) Max total LAN length using multi-strand security cable = 300m Max total LAN Length using 2 pair twisted shielded data cable (Belden 8723) – 1200m See manual for complete wiring instructions
Inputs Cabinet tamper
Fixing Method The CM760 can be mounted in the MW700, Mw710, MW720 or MW730 enclosures using clip in PCB mounts supplied
Accuracy Better than +/- 2 minutes per calendar year
Environmental Considerations Temperature: 0° to 55°C
Relative humidity 5% to 85% at 30°C non-condensing
Dimensions 115(W) x 86(D) x 30H)mm
Warranty 3 years

(CM760B)

SKU CM760B
Brand Bosch
Unit Of Measure Each
Assembled Length 0.100m
Assembled Height 0.040m
Assembled Width 0.100m
Type Stock
