Bosch Smartcard Reader PR115B Black Slim (PR115B) (E43178)

SKU:PR115B

Please login or register to view pricing.

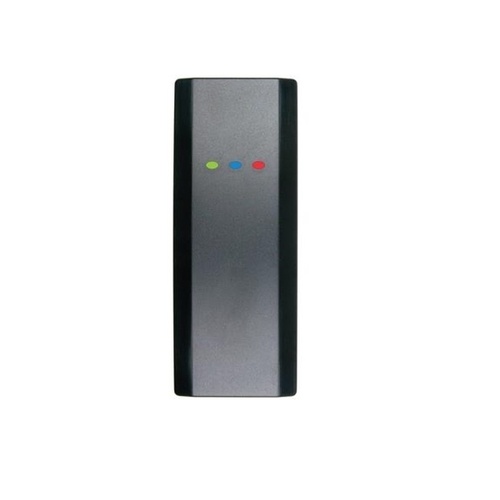

Bosch Smartcard Reader PR115B Black Slim (PR115B)

The PR115B external smart card LAN readers feature a high security, encrypted two authentication transmission format and can be used to provide alarm and/or access control function ability on selected Solution security control panels.

Constructed from UV stabilized ASA plastic, the external readers provide a high level of vandal resistance to IP66 making them ideal for outdoor situations.

The PR115B readers include red, green and blue indicators which are used to show area and or door lock status at all times.

The reader connects to the control panel via RS485 encrypted LAN and occupies a standard keypad position in the panel configuration. Various options can be configured via the devices - keypad and readers menu in panel programming. User access events are stored in the panel log and can also be reported if required.

Operating Voltage 10.0VDC - 14.5VDC @ 100mA Max
Module Connection (RS484 LAN Max total LAN length using multi strand security cable = 500m / Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m / See full control panel manual for complete wiring instructions.
Dimensions: 44mm(W), 21mm(D), 114mm(H)
Environmental Considerations Temperature -30° to 55°C RH to 85% at 30°C non-condensing.
Warranty 3 years

(PR115B)

SKU PR115B
Brand Bosch
Unit Of Measure Each
Assembled Length 0.160m
Assembled Height 0.020m
Assembled Width 0.090m
Type Stock
