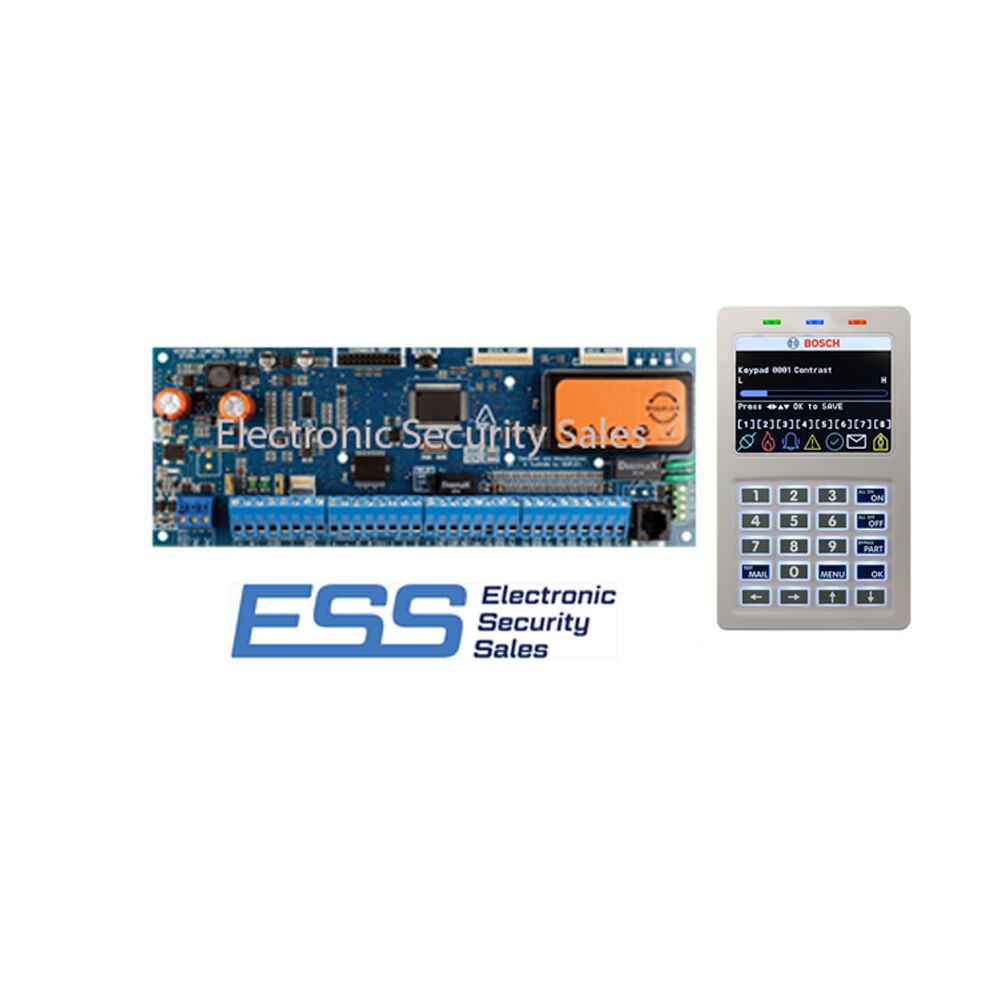

BOSCH SOLUTION 6000 PCB & CP737B WIFI & SMARTCARD KEYPAD - WHITE (CC610GWF) (E43288)

SKU:CC610GWF

Please login or register to view pricing.


Bosch Solution 6000 PCB & CP737B Wifi Keypad - White (CC610GWF) The CP737B is a Graphic Keypad from Bosch that compatible with Solution 6000 and comes in WiFi in keypad. The Solution 6000 Alarm System offers an extensive feature listing including numerous wire free options, high speed windows programming software and the simplest user - installer interface. The solution 6000 can be programmed to manage 144 zones that can be divided into 8 separately controlled areas. The 144 fully programmable intrusion zones can support sensors fitted to doors and windows, motion sensors and smoke detectors. When events are detected, the Solution 6000 can sound sirens, transmit events to your monitoring service provider and activate lights, providing security you can rely on 24 hours a day. Your Solution 6000 can store up to 1000 events ie. arm/ disarm functions and door access reports for each user, which can be viewed from the keypad by the master user. This way you can monitor the movements of your children daily if required. With 5 on-board outputs (expandable to 37), and one already pre programmed for a roller shutter or garage door, your Solution 6000 can cater for all your home automation requirements, including lighting, air conditioning, irrigation - just about anything that is controlled via a switch and can be programmed.
  • Up to 144 zones & 990 users
  • Full text menu display for programming & user control
  • Supported communication formats include Conettix IP, GSM, SMS, Email, CID, GPRS, CSV IP, SIA 3+ Text, Voice and Domestic Dial
  • SMS via Bosch GSM & SMS panel control ie. arm, disarm
  • Up to 37 outputs available with one on-board dedicated relay programmed for roller doors
Voltage Input 16-18V A.C 50-60Hz – 24VA External Power Adaptor or 220-240V A.C. to 18V A.C 50-60Hz – 24VA Internal Transformer (Primary Power Source)
Continuous Power 1 Amp MAX (Combined power drawn from Accessory Power (+12V) LAN Power (Module LAN +) and Output Power (C+) terminals must not exceed 1 Amp.
Alarm Power 4 Amp (Total with primary and secondary power sources fitted)
Stand-by Battery 12 VDC, 7.2AH sealed rechargeable battery – Panasonic LC-P127R2P or equivalent. (Secondary Power Source). Dispose of used batteries according to instructions
Min Operating Voltage 10.2 VDC
Battery Charger   Pulse by pulse charger. (Note: Charge voltage cannot be measured unless battery is fitted.)
Module Connection (RS485 LAN) Max. total LAN length using multi strand security cable = 300m Max. total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m. See the product installation manual for complete wiring instructions
Telephone Connections RJ-12 Socket or 4-way terminal Communications
Communications CID, SIA, SMS, Email, Voice, Domestic Dialling, GSM-CID, GSM-SMS, Connetix IP, CSV-IP
Environmental Considerations Temperature 0° to 55°C Relative Humidity 5 to 85% non-condensing Enclosure
Relative Humidity 5 to 85% non-condensing
Enclosure Fixing Method CM720B – Small Enclosure Using appropriate fasteners capable of handling a minimum of 6kgs to fix the cabinet against a sturdy surface using the mounting holes provided. CM730B – Large Enclosure Using appropriate fasteners capable of handling a minimum of 12kgs to fix the cabinet against a sturdy surface using the mounting holes provided
Enclosure Dimensions MW720B: 385(W), 260(H), 90(D)mm MW730B: 385(W), 520(H), 90(D)mm
PWA Dimensions 235(W), 85(H), 40(D)mm
Warranty 3 years

(CC610GWF)

SKU CC610GWF
Brand Bosch
Unit Of Measure Each
Assembled Length 0.250m
Assembled Height 0.100m
Assembled Width 0.200m
Type Stock
