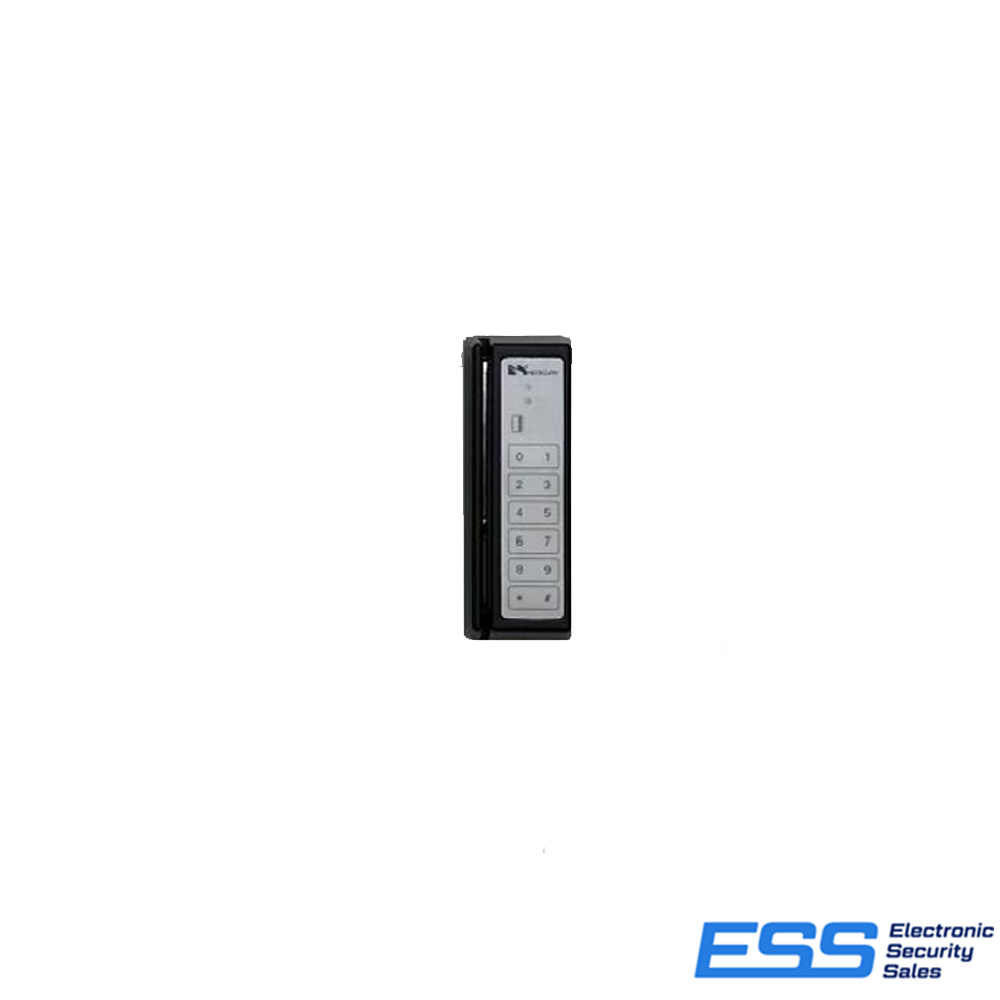

Mag Stripe Reader with Keypad

SKU:E37003

Please login or register to view pricing.


Mag Stripe Reader with Keypad Features
  • Bi-colour LED and annunciation
  • Ruggedized metal housing
  • Multi-track reading
  •  Multi-format programmability
  • Static discharge protection
  • Self Test
  • 2 Year Warranty
  • UL 294 listed
The Access Platforms MR10 and MR20 provide a reader interface for low power, multi-track, multi-format, ruggedized, indoor/outdoor, high performance access control. Both units are capable of supporting variable bit patterns in Wiegand or clock and data, making them compatible with a wide range of access control panels. Both also feature bi-colour visual indicators and variable annunciation. With attractive die cast metal housing, both units are suitable for a broad range of environments. The MR10 reader offers a basic magnetic card stripe interface, accepting low or high-coercivity magnetic stripe cards with standard track 2 encoding. Track1 and track 3 versions are also available. Suitable for any setting, the MR20 differs from the MR10 in that it incorporates a 12-position membrane keypad. All signal lines are protected from Electrostatic Discharge (ESD). The nominal distance between the reader and the controller is 500 feet. Card: Encoding: 75 BPI, Aiken Biphase (2F2) Read Speed: 3 to 50 inches per second Mechanical: Case: Aluminium alloy Finish: grey or black powder coat Dimensions: 1.95”W x 1.30”H x 5.50”L [50mm x 33mm x 140mm] Weight: 10 oz [285g], nominal Mounting: One security screw Connection: 6 conductor cable w/connector Electrical: Voltage: +5Vdc or +12Vdc Current: 20 milliamperes typical Wiring: 500 ft. (150m) maximum Data Output: data 1/data 0 (Wiegand pulses), or clock and data (magnetic) Annunciators: LEDs: Upper: red Lower: green LED control Single line Buzzer Keypad: Layout: 12-position, membrane type Feedback: Audible and visual Data Interface: Multiplexed on data pins Environmental: Operating Temperature: -40°C to +75°C Humidity 95% (weatherized option) 100% Standards: UL 294 Listed, CE compliant, RoHS

(E37003)

SKU E37003
Brand Mercury
Unit Of Measure Each
Type Stock
