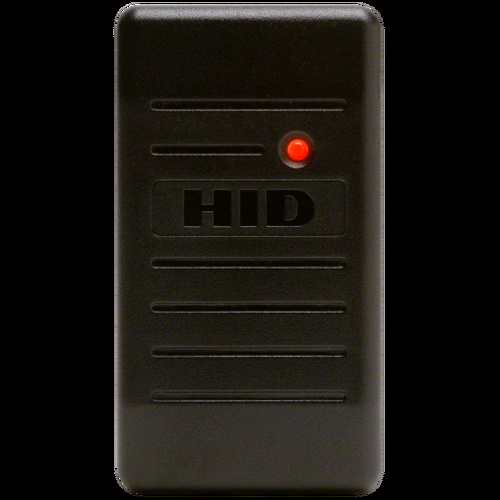

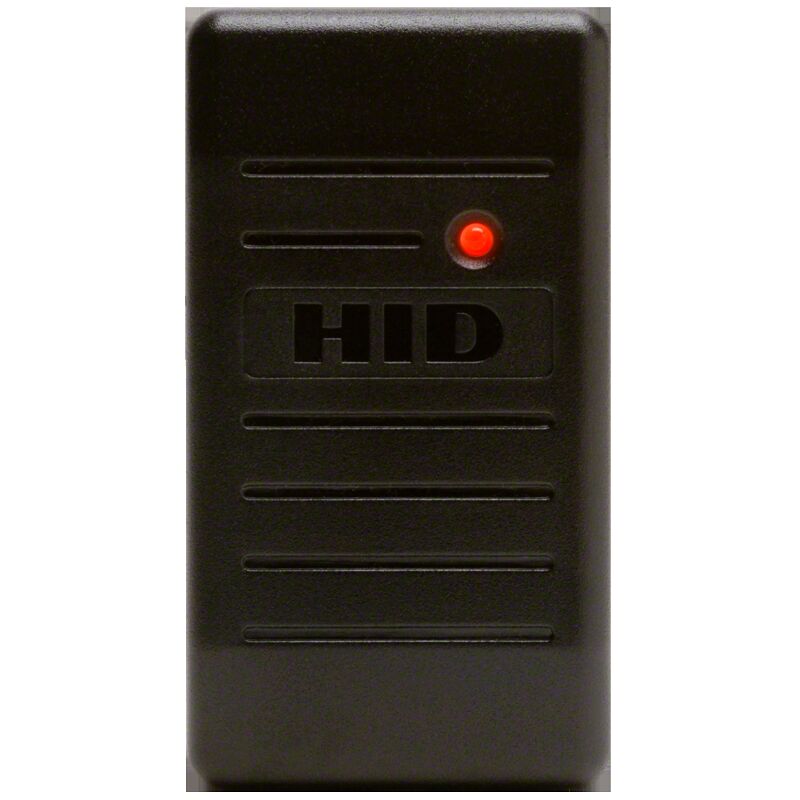

HID ProxPoint Plus Reader (6005) (E11001)

SKU:HID-6005

Please login or register to view pricing.


HID ProxPoint Plus Reader HID's ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
  • Small sized, low cost reader features a beeper and multicolour LED which can be host and/or locally controlled.
  • Potted reader suitable for indoor or outdoor use.
  • 18" (45 cm) wire pigtail standard; consult factory for 9' (2.7 m) pigtail available by special order.
  • Classic Series covers available in black, grey, white or beige. Designer Series covers available in black or grey.
Key Features
  • Features a beeper and multicolour LED which can be host and/ or locally controlled.
  • Enables various beeper and LED configurations, depending on individual site requirements.
  • Can read HID cards with formats up to 85 bits.
  • Designed for mounting directly onto metal with no change in read range performance.
  • Available with either Wiegand or Clock-and-Data (magnetic stripe data) output.
  • Compatible with all standard access control systems.
  • Aesthetic design available in two cover designs and in four colours to match any décor.
  • Includes multilingual installation manual.Typical maximum* read range ProxCard® II Card - up to 3" (7.6 cm) ISOProx® II card - up to 2.5" (6.35 cm) DuoProx® II Card - up to 2.5" (6.35 cm) Smart ISOProx®/DuoProx® II Cards - up to 2.5" (6.35 cm) Proximity & MIFARE® Card - up to 2.5" (6.35 cm) ProxCard Plus® Card - up to 1.0" (2.5 cm) ProxKey® II Keyfob - up to 1.5" (3.8 cm) MicroProx® Tag - up to 2" (5.1 cm)*Depending on local installation conditions.Dimensions 3.135" x 1.720" x 0.660" (7.96 x 4.37 x 1.68 cm)Power Supply 5-16 VDC Linear power supplies are recommended. Maximum Current Requirements Current (DC) Average 30 mA, Peak 75 mA Operating Temperature -22º to 150º F (-30º to 65º C) Operating Humidity 0-95% relative humidity noncondensing Weight 2.7 oz. (75 gm) Current Requirements 20mA avg / 75mA peak at 12VDC Cable Distance Wiegand or Clock-and-Data interface: 500 feet (150 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor stranded with overall shield or equivalent.

(HID-6005)

SKU HID-6005
Brand HID
Unit Of Measure Each
Type Stock
