HID Thinline Reader

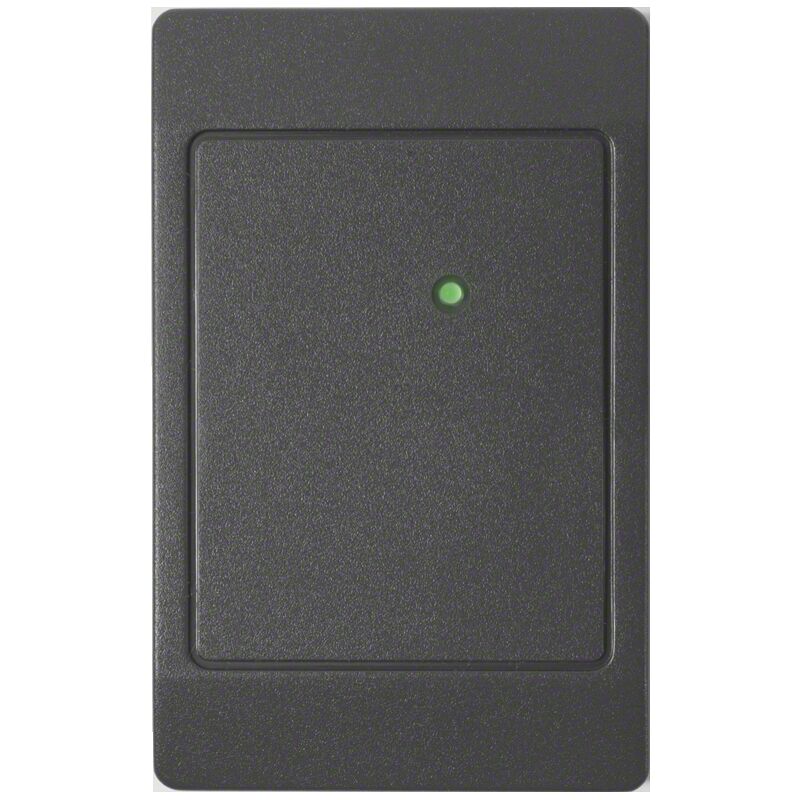

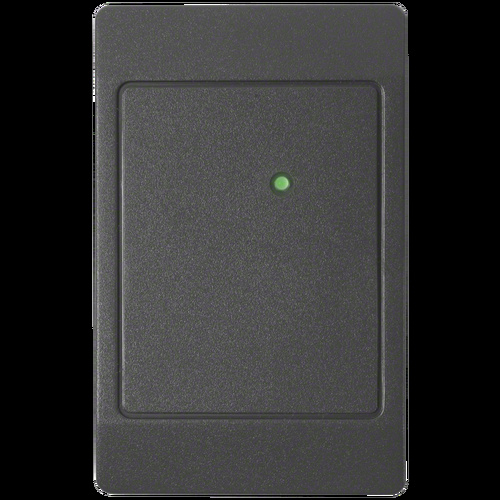

HID Thinline Reader Providing performance and reliability, HID's attractive, unobtrusive ThinLine II® proximity card reader is housed in a two-piece, weatherproof secure potted enclosure.

• The size of most standard U.S. switch plates.
• Available with Wiegand or Clock-and-Data interface.
• Potted reader suitable for indoor or outdoor use.
• Base part numbers: 5395 (Wiegand), 5398 (Clock-and-Data).
• 18" (45 cm) wire pigtail standard; consult factory for 9' (2.7 m) pigtail available by special order.

  Key Features

• Easily installed and maintained with the use of replaceable covers.
• Available with a Wiegand or Clock-and-Data interface.
• Provides high reliability, consistent read range and low power consumption.
• Features include multicolour LED and internal control or host control of the LED and beeper.
• Mounts directly on metal with minimal impact on the read range performance.
• Aesthetic design available in two cover designs and four colours to match any décor.
• Includes multilingual installation manual.

Typical maximum* read range ProxCard® II Card - up to 5.5" (14 cm) ISOProx® II Card - up to 5" (12.7 cm) DuoProx® II Card - up to 5" (12.7 cm) Smart ISO/DuoProx™ Cards - up to 5" (12.7 cm) Proximity & MIFARE™ Card - up to 5" (12.7 cm) ProxCard® Plus Card - up to 1.5" (3.8 cm) ProxKey® II Keyfob - up to 2" (5.1 cm) Microprox® Tag - up to 3" (7.6 cm) *Depending on local installation conditions. Dimensions 11.9 x 7.6 x 1.7 cm Power Supply 5-16 VDC Linear power supplies are recommended. Current Requirements Average: 30 mA (5 VDC); 20 mA (12 VDC) Peak: 110 mA (5 VDC); 115 mA (12 VDC) Operating Temperature -30º to 65º C Operating Humidity 0-95% relative humidity non-condensing Weight 94 gm Cable Distance Wiegand interface: 150 m Clock-and-data interface: 15 m Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.
