HID ProxPro with Keypad (E11004)

SKU:HID-5355

Please login or register to view pricing.

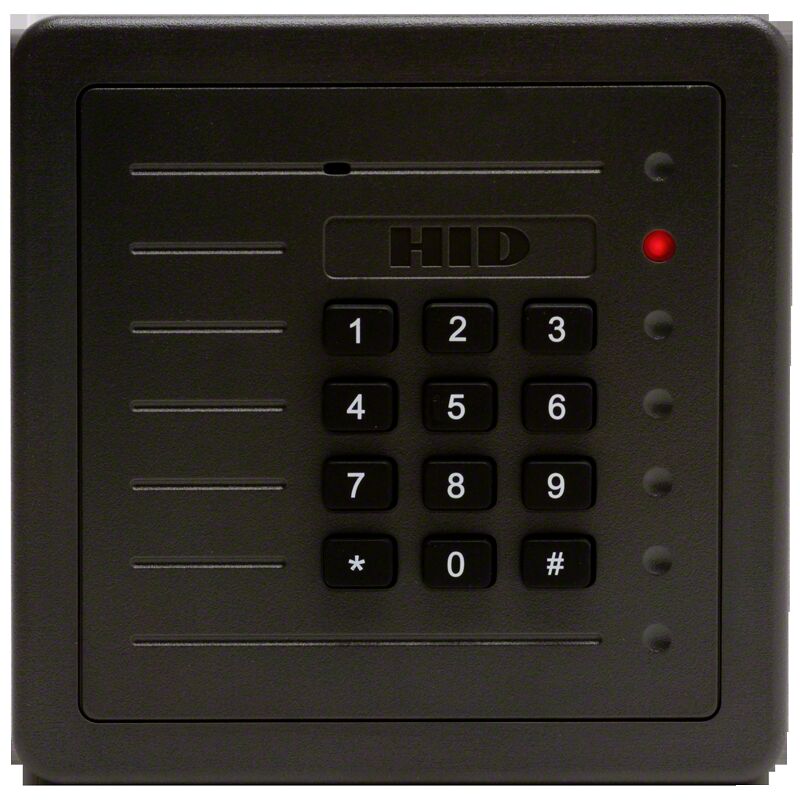

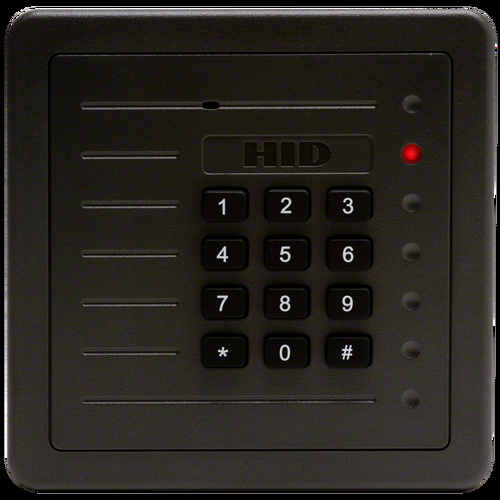

HID ProxPro with Keypad

The Prox Pro® proximity card reader's weatherproof design and architecturally attractive enclosure allows easy mounting indoors or out. The Prox Pro Reader is ideal for applications requiring a larger read range.

  • Ideal for medium-range applications.
  • Available with Wiegand, Serial (RS-232/RS-422) or Clock-and-Data interface.
  • Sealed for indoor or outdoor use.
  • Optional glass mount kit available for mounting the reader behind glass.
  • Available in grey or beige.
  • Keypad data and card data can be sent on the same cable, or on a separate cable using 2 of 7 or 3 x 4 matrix.
Key Features
  • Affords high reliability, consistent read range characteristics, and low power consumption in a single, easy-to-install package.
  • Features multicolour LED, internal or host control of the LED, and/or beeper and a beeper "off" switch for silent operation.
  • Provides Wiegand protocol interface compatibility with all standard access control systems.
  • Offers an optional, fully integrated personal identification number keypad for heightened security. Can be mounted to glass (using the optional glass mounting kit).
Typical maximum* read range ProxCard® II Card - up to 8" (20 cm) ISOProx® II Card - up to 7" (17.5 cm) DuoProx® II Card - up to 7" (17.5 cm) Smart ISOProx® II Card - up to 7" (17.5 cm) Smart DuoProx® II Card - up to 7" (17.5 cm) HID Proximity & MIFARE® card - up to 7" (17.5 cm) ProxCard® Plus Card - up to 3" (7.5 cm) ProxKey® II Keyfob - up to 3" (7.5 cm) MicroProx® Tag - up to 4" (10.2 cm) ProxPass® Active Vehicle Tag - N/A *Depending on local installation conditions. Dimensions 12.7 x 12.7 x 2.54 cm Power Supply 10-28.5 VDC; Linear power supplies recommended. Reverse voltage protection included. Current Requirements Average: 100 mA (12 VDC) Peak: 120 mA (24 VDC) Operating Temperature -30º to 65º C Operating Humidity 0-95% relative humidity non-condensing Weight 336 gm Cable Distance Wiegand or Clock and Data interface: 152 m RS-232 interface: 15 m RS-422 interface: 1219 m Recommended cable is ALPHA 1295 (22 AWG) 5 conductor stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control. RS-422 requires ALPHA 6212C 2-Twisted Pair, shielded cable with drain wire, or equivalent for data, plus ALPHA 1292C two-conductor shielded or equivalent for DC power.

(HID-5355)

SKU HID-5355
Brand HID
Unit Of Measure Each
Type Stock
