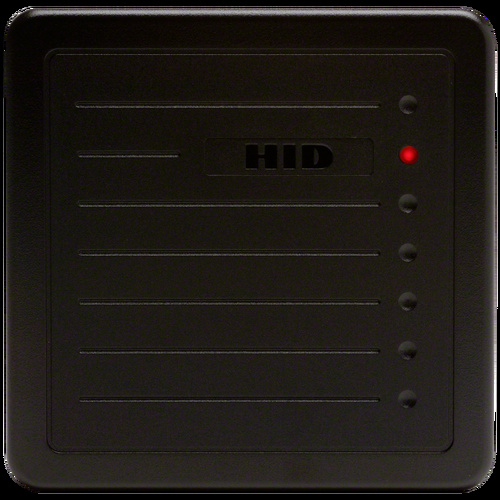

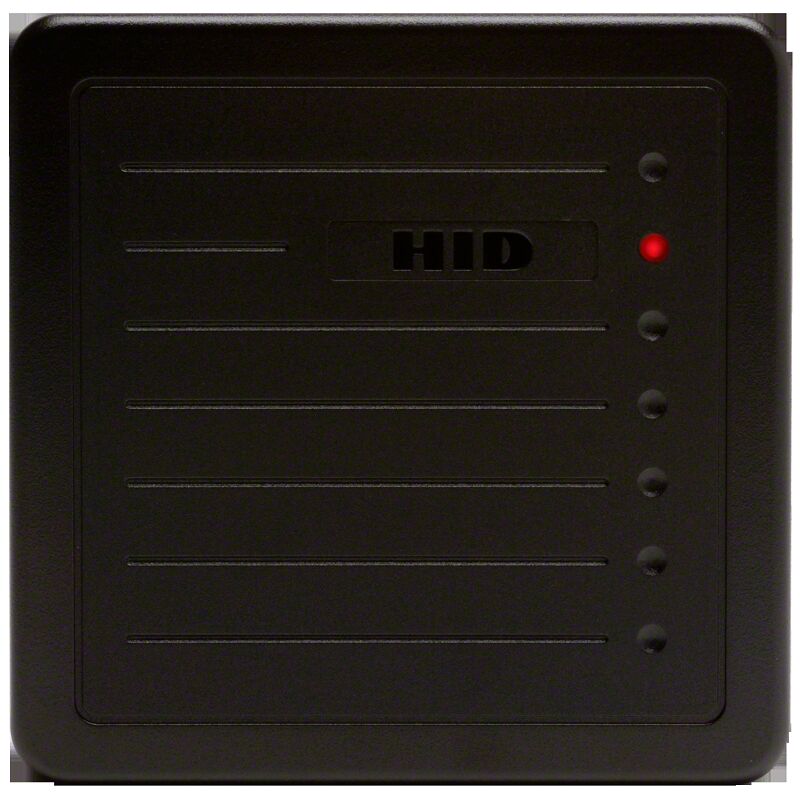

HID ProxPro II Medium Range Reader (E11037)

SKU:HID-5455

Please login or register to view pricing.


HID ProxPro II Medium Range Reader

HID's ProxPro® II proximity reader for access control combines performance, reliability, and ease of installation into a two-piece, weatherproof potted enclosure. International users will appreciate the multilingual installation manual, lower voltage requirement and flexible mounting options.

  • Ideal for medium-range applications.
  • Available with Wiegand or Clock-and-Data interface.
  • Optional glass mount kit available for mounting the reader behind glass.
  • Potted reader suitable for indoor or outdoor use.
  • Available in black, white, grey or beige.
  • 18" (45 cm) wire pigtail standard; consult factory for 9' (2.7 m) pigtail available by special order.
Key Features
  • Two-piece reader design allows for easy installation.
  • Available with a Wiegand or Clock-and-Data interface.
  • Provides high reliability, consistent read range and low power consumption.
  • Features include multicolour LED and internal control or host control of the LED and beeper.
  • Mounts directly on metal with minimal impact on the read range performance. Optional kit enables mounting behind glass.
  • Compare features of the ProxPro II to the original ProxPro reader
Typical Maximum Read Range ProxCard® II Card - up to 9" (22 cm) ISOProx® II Card - up to 8" (20 cm) DuoProx® II Card - up to 8" (20 cm) Smart ISOProx® Card - up to 8" (20 cm) Smart DuoProx® Card - up to 8" (20 cm) HID Proximity and MIFARE® card - up to 8" (20 cm) ProxCard® Plus Card - up to 4" (10 cm) ProxKey® II Keyfob - up to 4" (10 cm) MicroProx® Tag - up to 4" (11 cm) *Depending on local installation conditions. Dimensions 12.7 x 12.7 x 2.54 cm Power supply 5-16 VDC Linear power supplies are recommended. Cable Distance Wiegand interface: 150 m Clock-and-Data interface: 15 m Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control. Current Requirements Average: 25 mA at 12 VDC Peak: 125 mA at 12 VDC Operating Temperature -30º to 65º C Operating Humidity 0-95% relative humidity non-condensing Weight 13.6 oz. (385 g)

(HID-5455)

SKU HID-5455
Brand HID
Unit Of Measure Each
Type Stock
