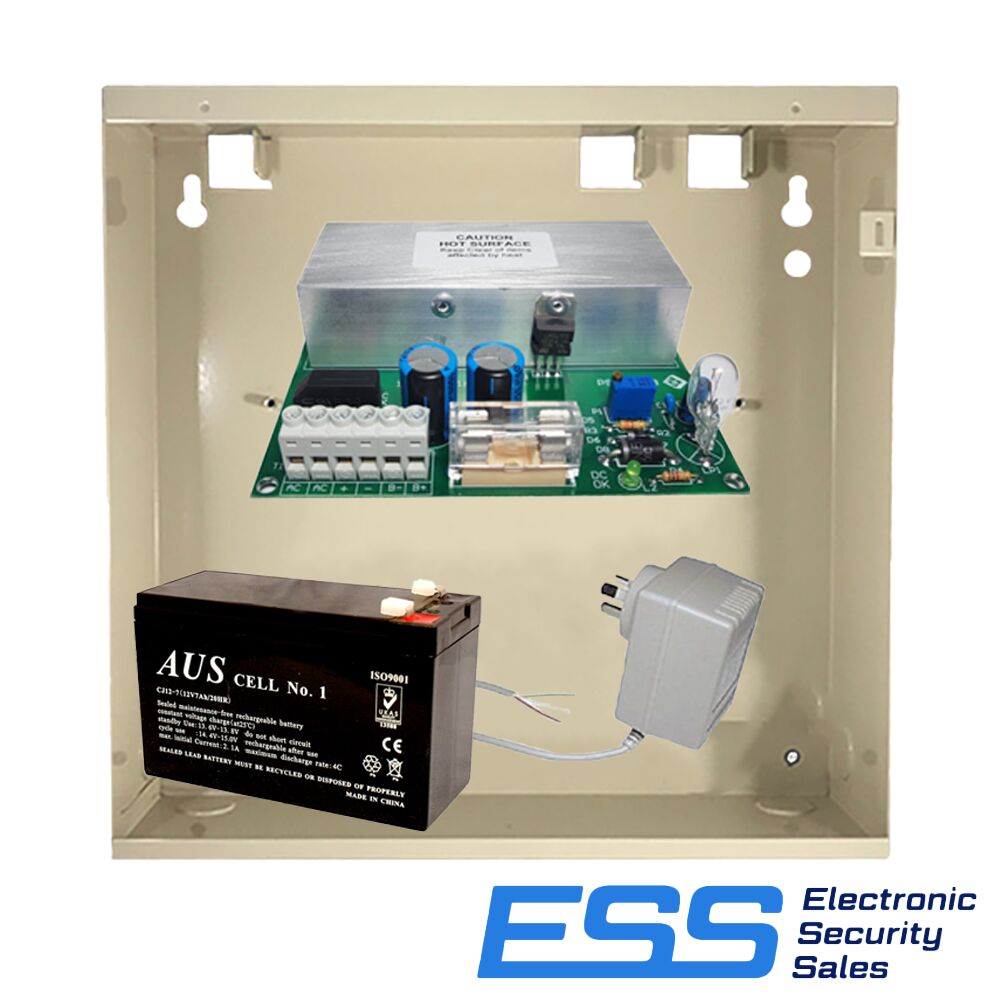

12vdc 1.0A Power Supply includes P/Pack, Enclosure and 12V7AH Battery

SKU:E28031

Please login or register to view pricing.


12vdc 1.0A Power Supply c/w P/Pack, Enclosure and 12V7AH Battery Kit Includes: E42024: 12VDC 7AH Battery x1 E43050: MW250 Metal Enclosure x1 E43054: Powermaster Bosch Plug Pack 18VAC 1.33A x1 E28030: PS138-V3 13.8VDC 1AMP Power Module x1 This module is a general purpose DC power supply module for use with a standard 16 to 18VAC plug pack. Provision has been made for connection of a Sealed Lead Acid (SLA) battery via the supplied leads which will be trickle charged by the module. An LED is provided to indicate the presence of AC power. This module is supplied with TWO (2) M205 fast blow fuses. If a backup SLA battery is connected via the battery leads which are connected to B+ and B– then install the 5A fuse. The module is capable then of supplying up to FOUR (4) amps MAXIMUM for short periods. If no battery is connected then the 1.5A fuse MUST be fitted. Failure to use the correct fuse may damage this power supply and/or the equipment that it is powering. The maximum current available without a backup battery is 1 AMP. The heat sink used for this module provides greater ability to dissipate heat thus reducing the temperature increase at higher current loads. The heat sink is also electrically isolated from the module. This new version of our linear power module features a DELAYED AC FAIL SPDT relay output and a LOW VOLTAGE SPDT relay output. Activation of these outputs are indicated by a RED LED for AC Fail and a YELLOW LED for Low voltage.

(E28031)

SKU E28031
Brand ePass
Unit Of Measure Each
Type Stock
