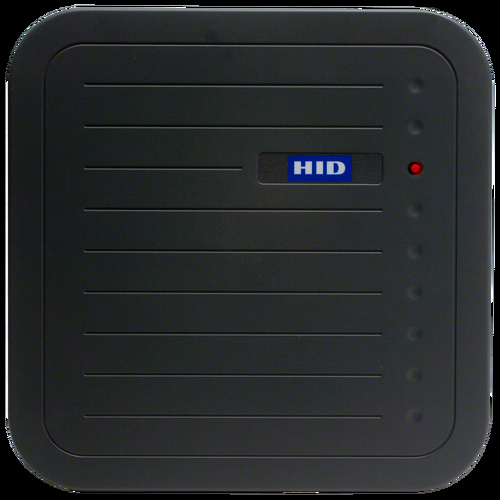

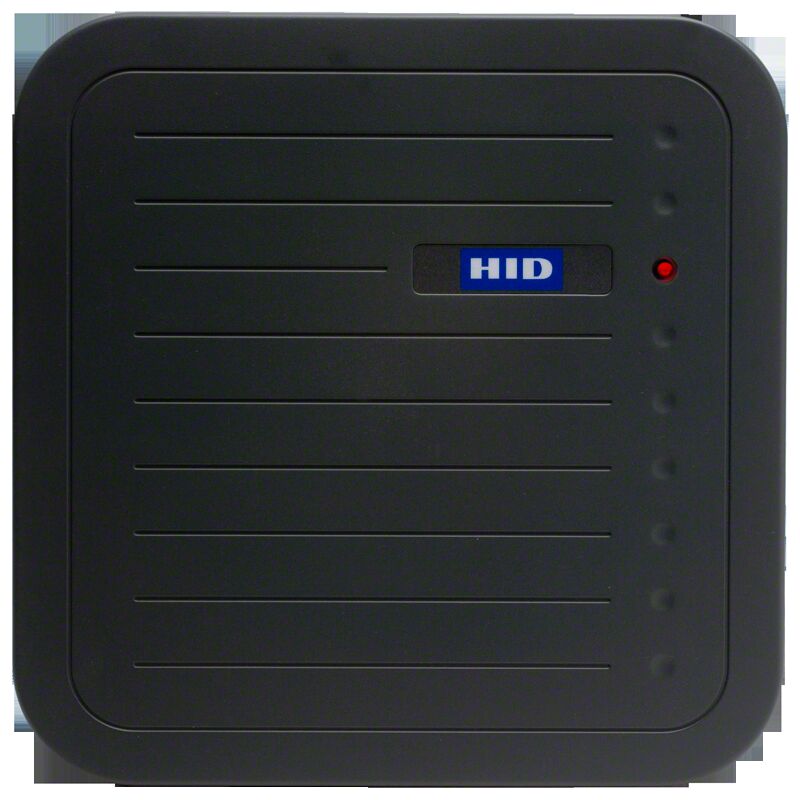

HID MaxiProx Long Range Reader (E11038)

• Long read range distance (up to 6' with ProxPass).
• Autotune allows read range to be maintained within four inches of metal.
• Wiegand, Clock-and-Data and selectable serial outputs available.
• "Parking hold" feature allows connection to a loop detector to ensure accurate detection of vehicles in parking lanes.
• Compatible with all HID cards and tags with formats up to 85 bits.
• Multicolor LED with internal or host control of the LED and beeper.
• Two MaxiProx units can operate one meter apart for "HI-LO" (truck and car) installations.
• Reader supervision signal for CASI-RUSCO panels.

  Typical Maximum Read Range* ProxCard II Card - up to 24" (60.9 cm) ISOProx II Card - up to 20" (50.8 cm) DuoProx II Card - up to 20" (50.8 cm) Smart ISOProx II - up to 20" (50.8 cm) Smart DuoProx II Card - up to 20" (50.8 cm) HID Proximity MIFARE Card - up to 20" (50.8 cm) ProxCard®Plus Card - up to 13" (33 cm) ProxKey II Keyfob - up to 17" (43.2 cm) Microprox Tag - up to 15" (38 cm) ProxPass Active Vehicle Tag - up to 6' (1.8 m) *Depending on local installation conditions. Dimensions 11.8" x 11.8" x 1.0" (30.0 x 30.0 x 2.54 cm) Cable distance Wiegand interface: 500 feet (152 m) Clock-and-data interface: 50 feet (15 m) RS-232: 50-200 feet (15-61 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control. RS-422 and RS-485: 4000 feet (1219 m) Recommended cable is ALPHA 1297. Power supply Configurable 12 or 24 VDC Linear power supplies are recommended. Current requirements DC Current at 12V: Avg. 200mA, Peak 700mA DC Current at 24V: Avg. 260mA, Peak 1.2A Operating temperature -22º to 150º F (-30º to 65º C) Operating humidity 0-95% relative humidity non-condensing Weight 51 oz. (1.4 kgm)
